Model No. | PTHL02A0 |
Input Voltage | AC100-277V |
Power | 100W |
Dimming | NO / 1-10V Dimmable |
PF | >0.95 |
Power Supply | SOSEN(Flicker Free) |
LED Type | 2835 (LM80) |
Beam Angle | 60° / 90° / 80*150° / 90*120° |
Light Efficiency | 150LM/W |
Luminous | 15000lm |
Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500K |
CRI | >70 (Ra80 optional) |
IP | IP65 |
IK | IK08 |
Working Temp | -20℃~45℃ |
Storage Temp | -40℃~60℃ |
Surge Protection | 6kV line-line, 6kV line-earth |
Life Span | 50000h@25℃ |
Function available

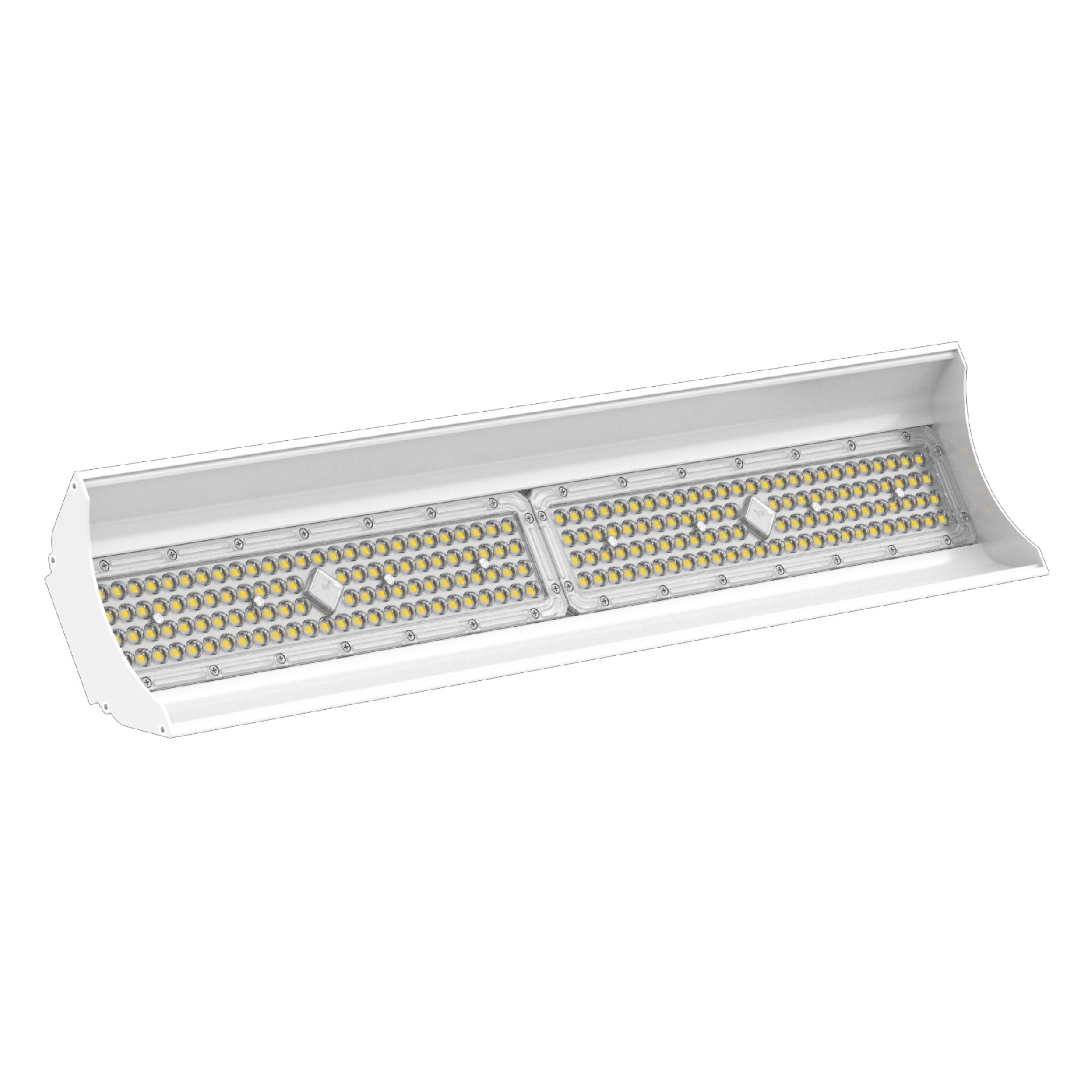

Product picture
LED Linear Light
Specifications
Product Series | LED Linear light B |
Model No. | PTHL02A0/PTHL02A5/PTHL02B0 |
Version | V2 |
Date | 2022/12/08 |
l Pure aluminum 6063 heat sink with good heat dissipation, dusting process makes it UV resistant;
l New structure design, avoiding the cleaning pressure from accumulating water and dust and maintenance;
l Various beam angles are available, easy change lens according to application requirement;
l Various wattages can be made up, from 100w up to 200w. If need other wattages, please consult sales.
l LM80 certified 2835 light source;
l 150 lm/W, over 90% energy saving;
l Easy installation and low maintenance, suspension and surface installation are available.
To replace the conventional rectangle high-bay light anywhere at like: high roof warehouse, Promenade, stadium, aisle, shelf warehouse etc.
![]() | ![]() |
PTHL02A0 |
PTHL02A5 |
PTHL02B0 |
![]() | ![]() |
Model No. | PTHL02A0 | PTHL02A5 | PTHL02B0 |
Input Voltage | AC100-277V | ||
Power | 100W | 150W | 200W |
Dimming | NO / 1-10V Dimmable | ||
PF | >0.95 | ||
Power Supply | SOSEN(Flicker Free) | ||
LED Type | 2835 (LM80) | ||
Beam Angle | 60° / 90° / 80*150° / 90*120° | ||
Light Efficiency | 150LM/W | ||
Luminous | 15000lm | 22500lm | 30000lm |
Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500K | ||
CRI | >70 (Ra80 optional) | ||
IP | IP65 | ||
IK | IK08 | ||
Working Temp | -20℃~45℃ | ||
Storage Temp | -40℃~60℃ | ||
Surge Protection | 6kV line-line, 6kV line-earth | ||
Life Span | 50000h@25℃ |
