Model No.PTHL02A5
Input VoltageAC100-277V
Power150W
DimmingNO / 1-10V Dimmable
PF>0.95
Power SupplySOSEN(Flicker Free)
LED Type2835 (LM80)
Beam Angle60° /  90° /   80*150°  /  90*120°
Light Efficiency150LM/W
Luminous22500lm
Color Temp3000±200K / 4000±250K / 5700±300K / 6500±500K
CRI>70 (Ra80 optional)
IPIP65
IKIK08
Working Temp-20℃~45℃
Storage Temp-40℃~60℃
Surge Protection6kV line-line, 6kV line-earth
Life Span50000h@25℃

Function available

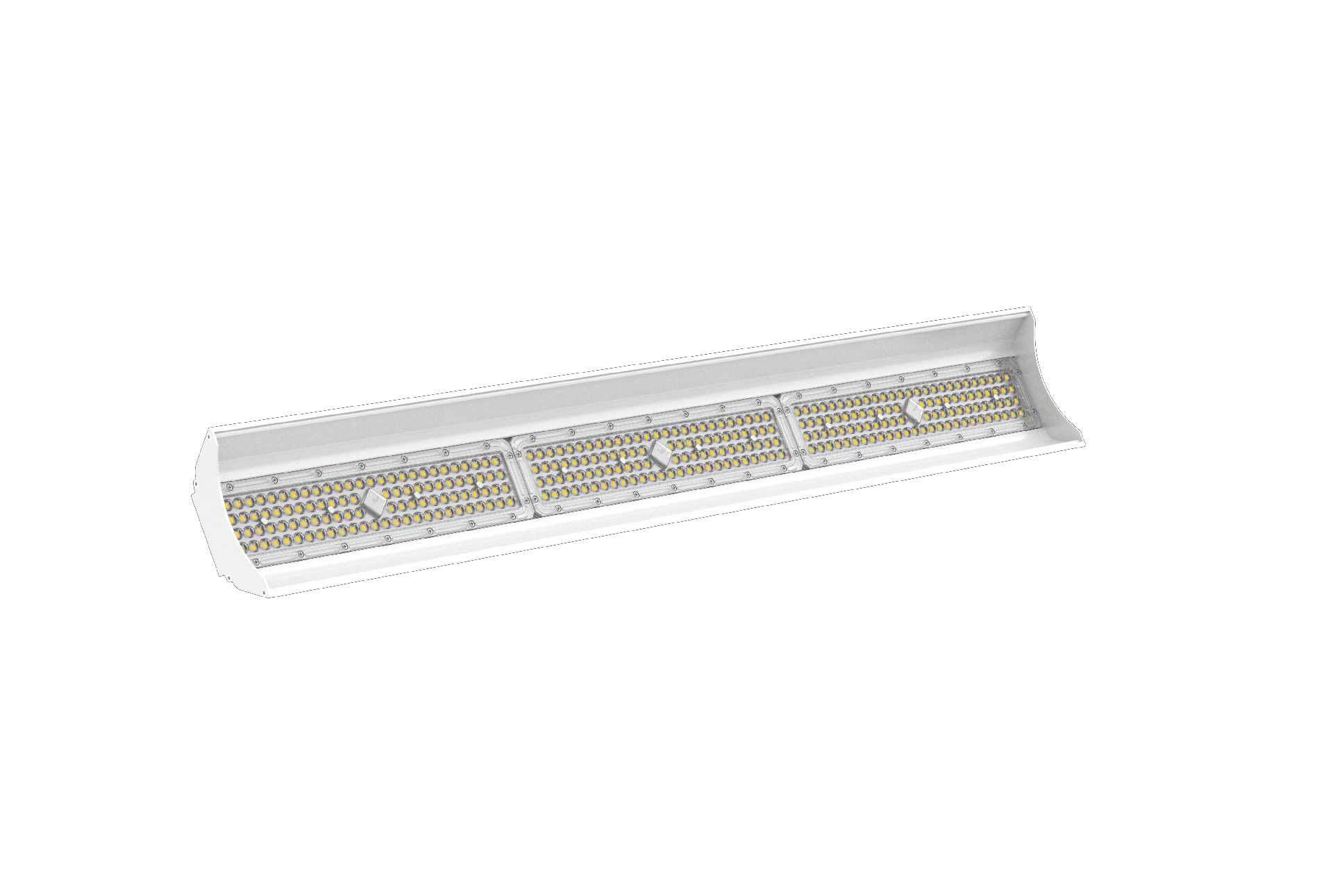

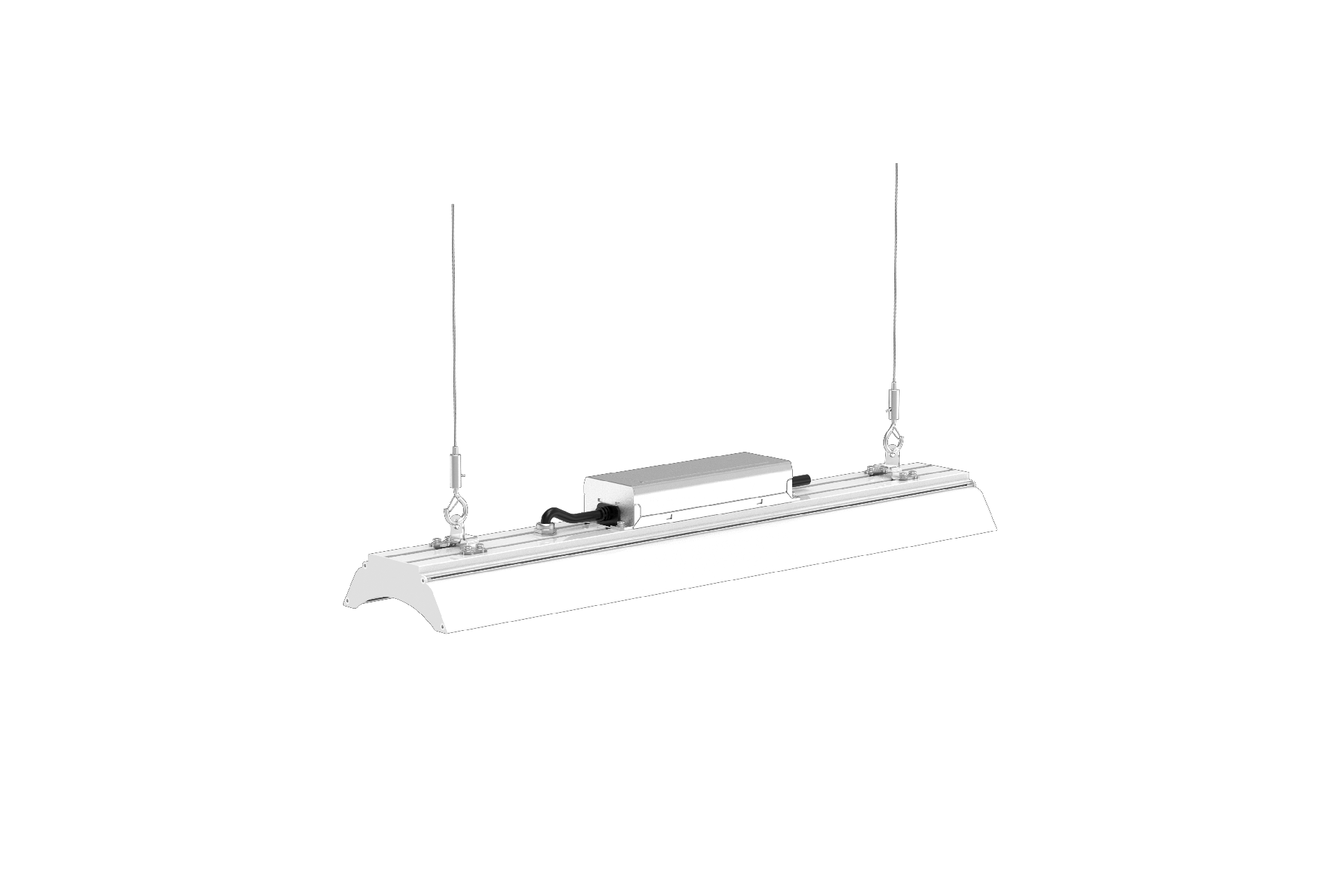

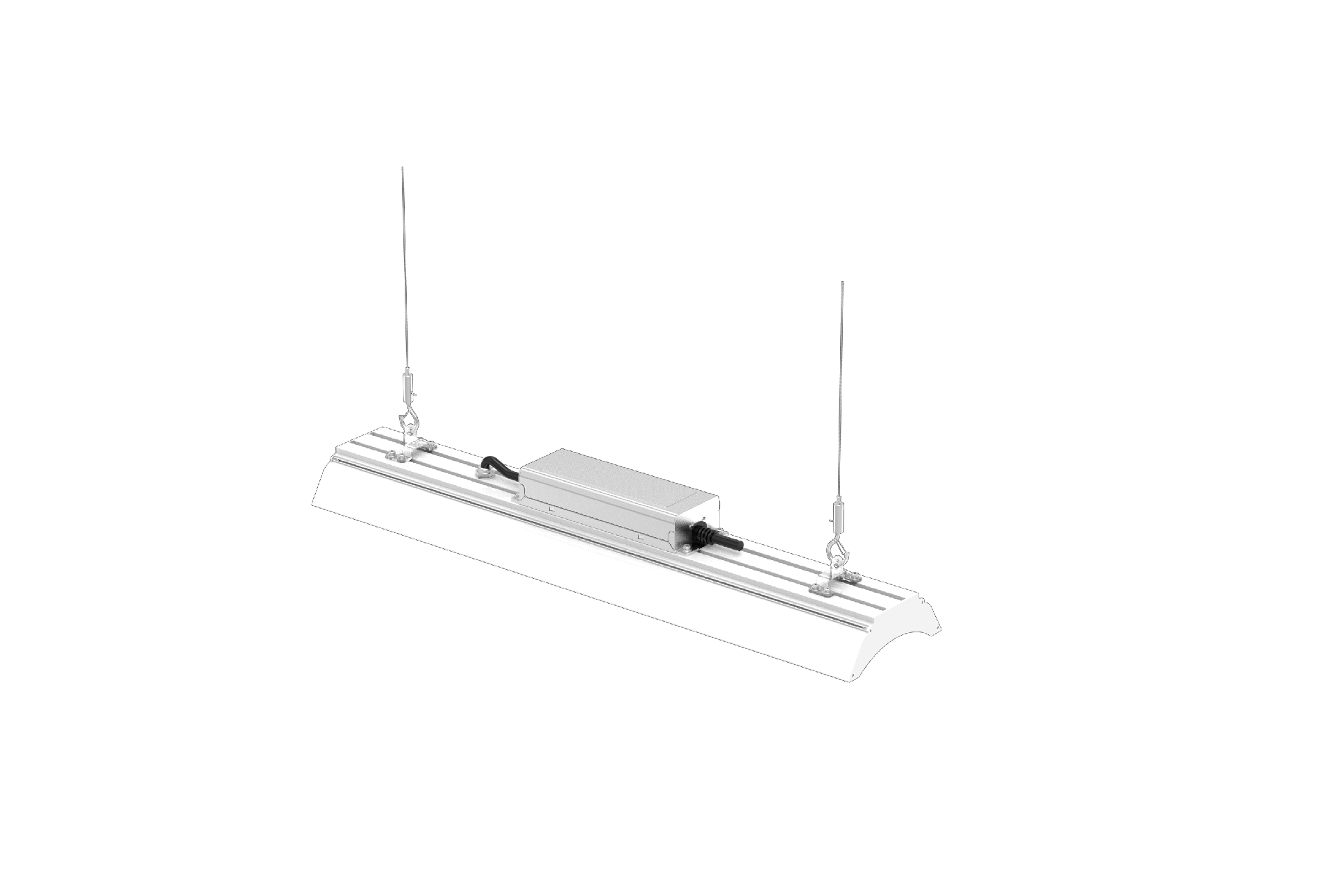

Product picture


LED Linear Light

Specifications

Product Series

LED Linear light B

Model No.

          PTHL02A0/PTHL02A5/PTHL02B0

Version

V2

Date

2022/12/08


l   Pure aluminum 6063 heat sink with good heat dissipation, dusting process makes it UV resistant;

l   New structure design, avoiding the cleaning pressure from accumulating water and dust and maintenance;

l   Various beam angles are available, easy change lens according to application requirement;

l   Various wattages can be made up, from 100w up to 200w. If need other wattages, please consult sales.

l   LM80 certified 2835 light source;

l   150 lm/W, over 90% energy saving;

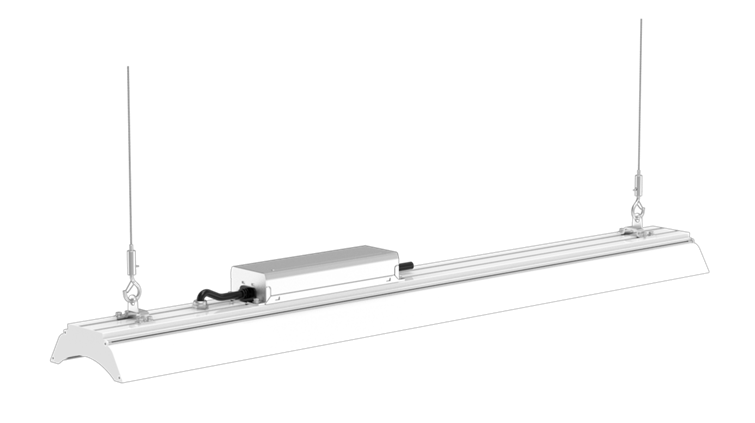

l   Easy installation and low maintenance, suspension and surface installation are available.

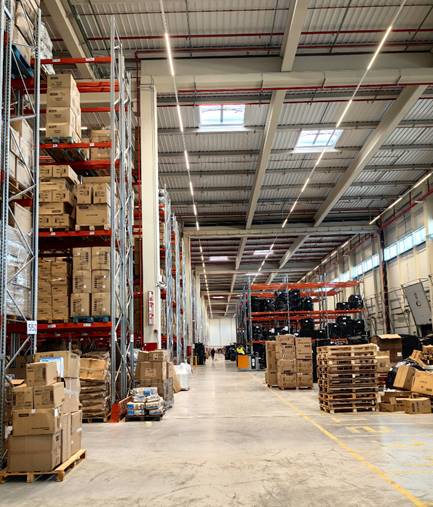

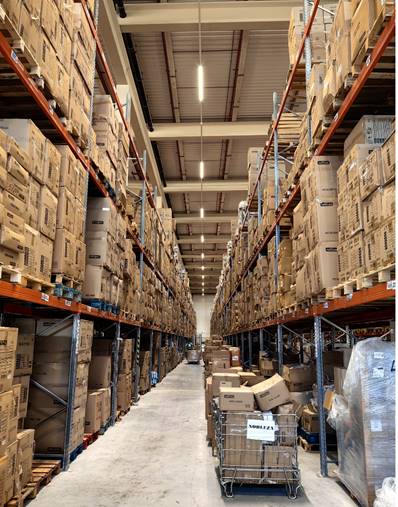

To replace the conventional rectangle high-bay light anywhere at like: high roof warehouse, Promenade, stadium, aisle, shelf warehouse etc.


PTHL02A0

PTHL02A5

PTHL02B0



Model No.

PTHL02A0

PTHL02A5

PTHL02B0

Input Voltage

AC100-277V

Power

100W

150W

200W

Dimming

NO / 1-10V Dimmable

PF

>0.95

Power Supply

SOSENFlicker Free

LED Type

2835 (LM80)

Beam Angle

60°  /  90°  /  80*150°  /  90*120°

Light Efficiency

150LM/W

Luminous

15000lm

22500lm

30000lm

Color Temp

3000±200K / 4000±250K / 5700±300K / 6500±500K

CRI

>70 (Ra80 optional)

IP

IP65

IK

IK08

Working Temp

-20~45

Storage Temp

-40~60

Surge Protection

6kV line-line, 6kV line-earth

Life Span

50000h@25




Recommended
