PTLM01A5 150W
| Model No. | PTLM01A5 |
| Input voltage | AC100-277V 50/60Hz |
| Power | 150W |
| PF | >0.9 |
| Driver | SOSEN DRIVER |
| LED Type | EMC 3030 |
| Beam angle | 90*90°/ T2-S /T3-M |
| Light efficiency | 170LM/W |
| luminous | 25500LM |
| Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500 K |
| CRI | 70/80Ra |
| IP | IP65 |
| Working Temp | -20°C-45°C |
| Storage Temp | -40°C-60°C |
| Life span | 50000h@25°C |
Function available

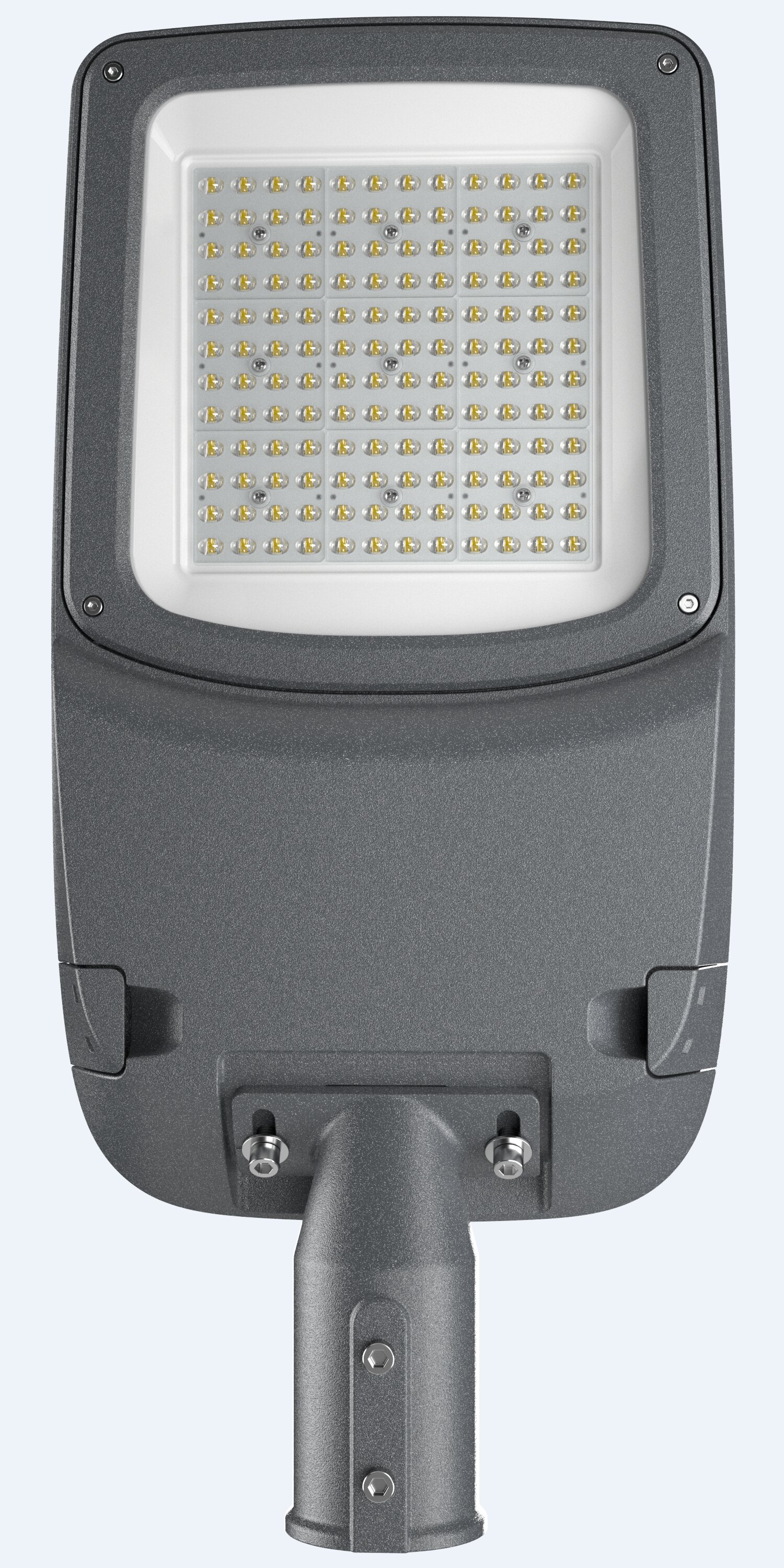

Product picture
LED Street light-D
Specifications
Product Series | LED Street light D |
Model No. | PTLM01A0/ PTLM01A5/ PTLM01B0 |
Version | V0 |
Date | 2024.2.24 |
PTLM01A0
PTLM01A5
PTLM01B0
Model No. | PTLM01A0 | PTLM01A5 | PTLM01B0 |
Input voltage | AC100-277V 50/60Hz | ||
Power | 100W | 150W | 200W |
PF | >0.9 | ||
Driver | SOSEN DRIVER | ||
LED Type | EMC 3030 | ||
Beam angle | 90*90°/ T2-S /T3-M | ||
Light efficiency | 170LM/W | ||
luminous | 17000LM | 25500LM | 34000LM |
Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500 K | ||
CRI | 70/80Ra | ||
IP | IP65 | ||
Working Temp | -20°C-45°C | ||
Storage Temp | -40°C-60°C | ||
Life span | 50000h@25°C | ||
Model No. | PTLH0150 | PTLH01A0 | PTLH01A5 | PTLH01B0 |
QTY/Carton | 1PCS | 1PCS | 1PCS | 1PCS |
Carton Size | ||||
N.W | ||||
G.W |
