PTLI01A0 100W
| Model No. | PTLI01A0 |
| Input voltage | AC100-277V 50/60Hz |
| Power | 100W |
| PF | >0.9 |
| Driver | SOSEN DRIVER |
| LED Type | EMC 3030 |
| Beam angle | 90*90°/ T2-S /T3-M |
| Light efficiency | 170LM/W |
| luminous | 17000LM |
| Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500 K |
| CRI | 70/80Ra |
| IP | IP65 |
| Working Temp | -20°C-45°C |
| Storage Temp | -40°C-60°C |
| Life span | 50000h@25°C |
Function available

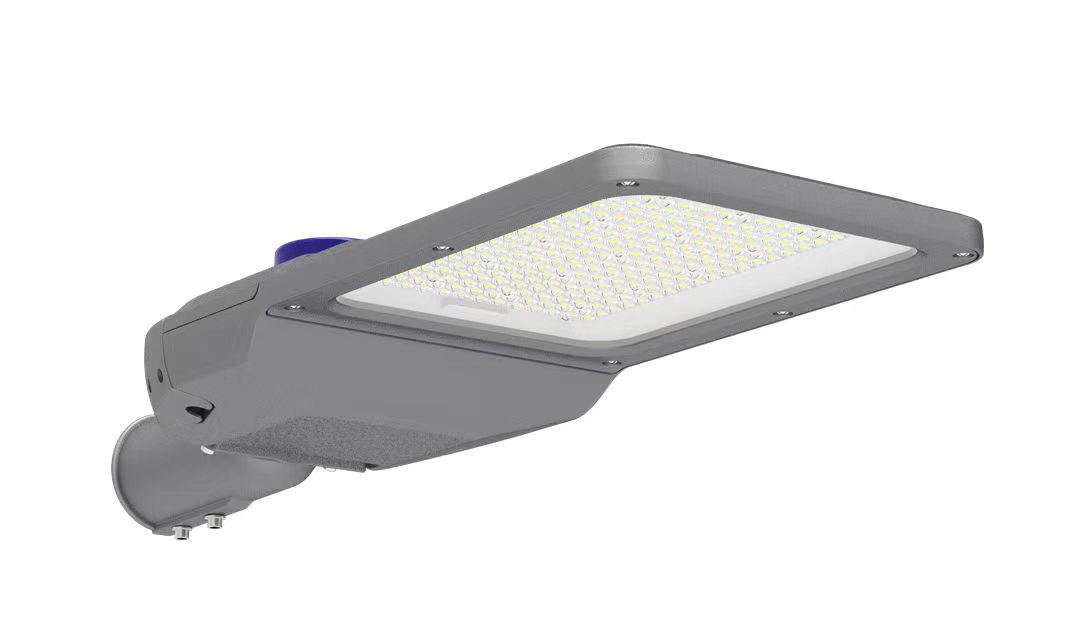

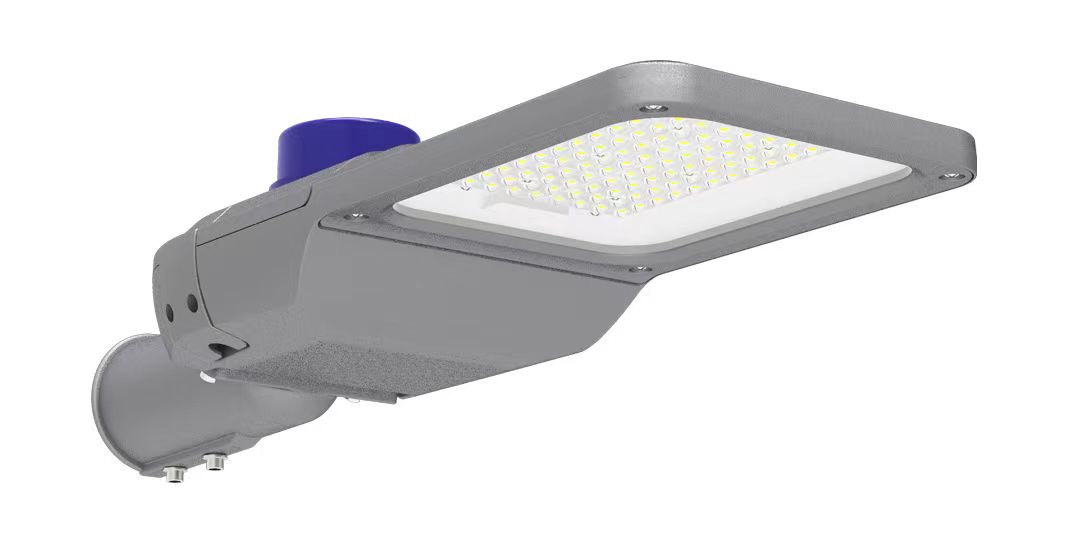

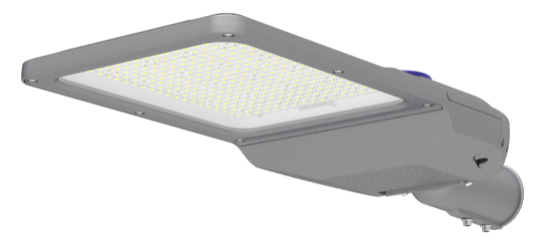

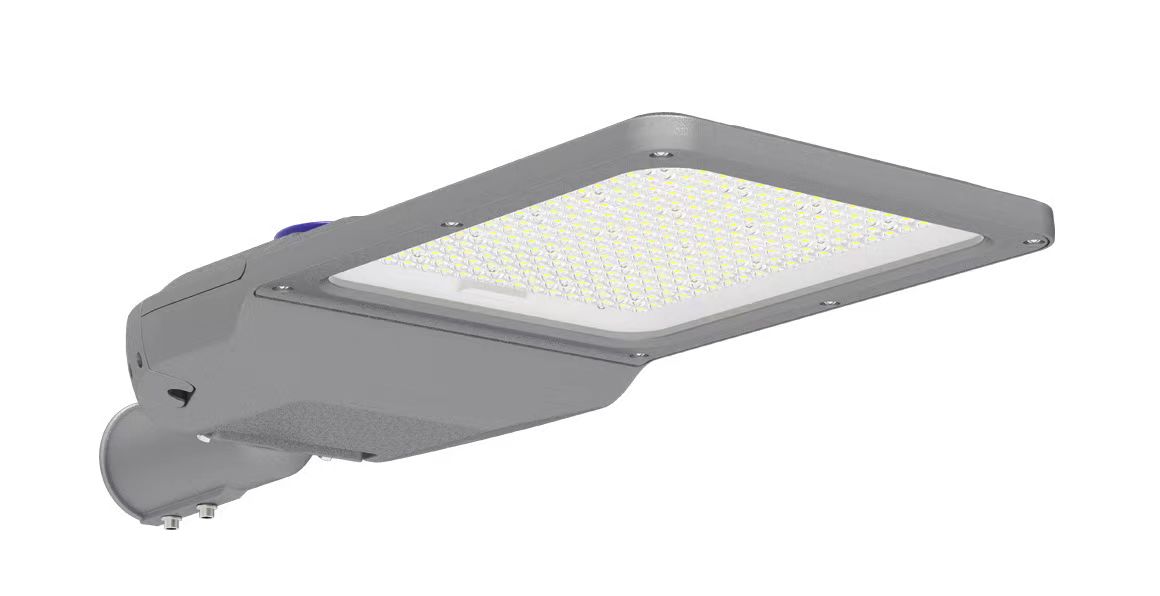

Product picture
LED Street light-C
Specifications
Product Series | LED Street light C |
Model No. | PTLI0150/PTLI01A0/ PTLI01A5/ PTLI01B0 |
Version | V0 |
Date | 2024.2.24 |

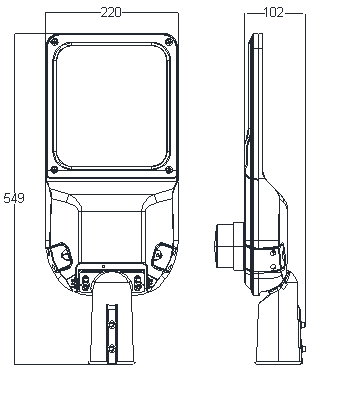

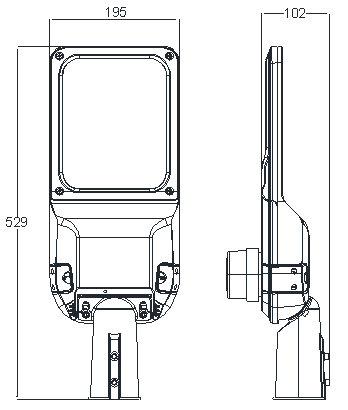

50W 100W

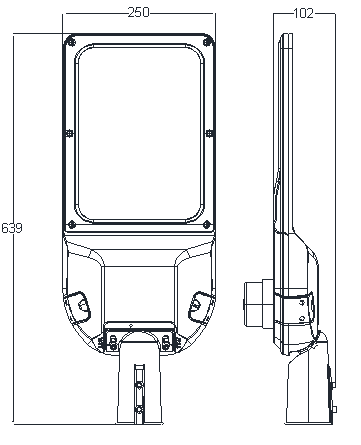

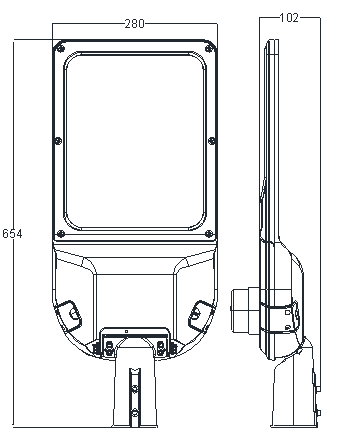

150W 200W
Model No. | PTLI0150 | PTLI01A0 | PTLI01A5 | PTLI01B0 |
Input voltage | AC100-277V 50/60Hz | |||
Power | 50W | 100W | 150W | 200W |
PF | >0.9 | |||
Driver | SOSEN DRIVER | |||
LED Type | EMC 3030 | |||
Beam angle | 90*90°/ T2-S /T3-M | |||
Light efficiency | 170LM/W | |||
luminous | 8500LM | 17000LM | 25500LM | 34000LM |
Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500 K | |||
CRI | 70/80Ra | |||
IP | IP65 | |||
Working Temp | -20°C-45°C | |||
Storage Temp | -40°C-60°C | |||
Life span | 50000h@25°C | |||
Model No. | PTLI0150 | PTLI01A0 | PTLI01A5 | PTLI01B0 |
QTY/Carton | 1PCS | 1PCS | 1PCS | 1PCS |
Carton Size | ||||
N.W | ||||
G.W |
