PTHE22A0 100W
| Model No. | PTHE22A0 |
| Input Voltage | AC220-240V/100-277V |
| Power | 100W |
| Dimming | 1-10V |
| Surge Protection | 6kV line-line, 6kV line-earth |
| PF | >0.95 |
| Power Supply | SOSEN(Ficker Free) |
| LED Type | 2835 |
| Beam Angle | 60°/90°/120° |
| Light Efficiency | 170 lm/W |
| Luminous | 17000 lm |
| Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500K |
| CRI | >70 (Ra80 optional) |
| IP | IP65 |
| IK | IK08 |
| Storage Temp | -40 °C ~60 °C |
| Working Temp | -20 °C ~45 °C |
| Life Span | 50000h@25 °C |
Function available

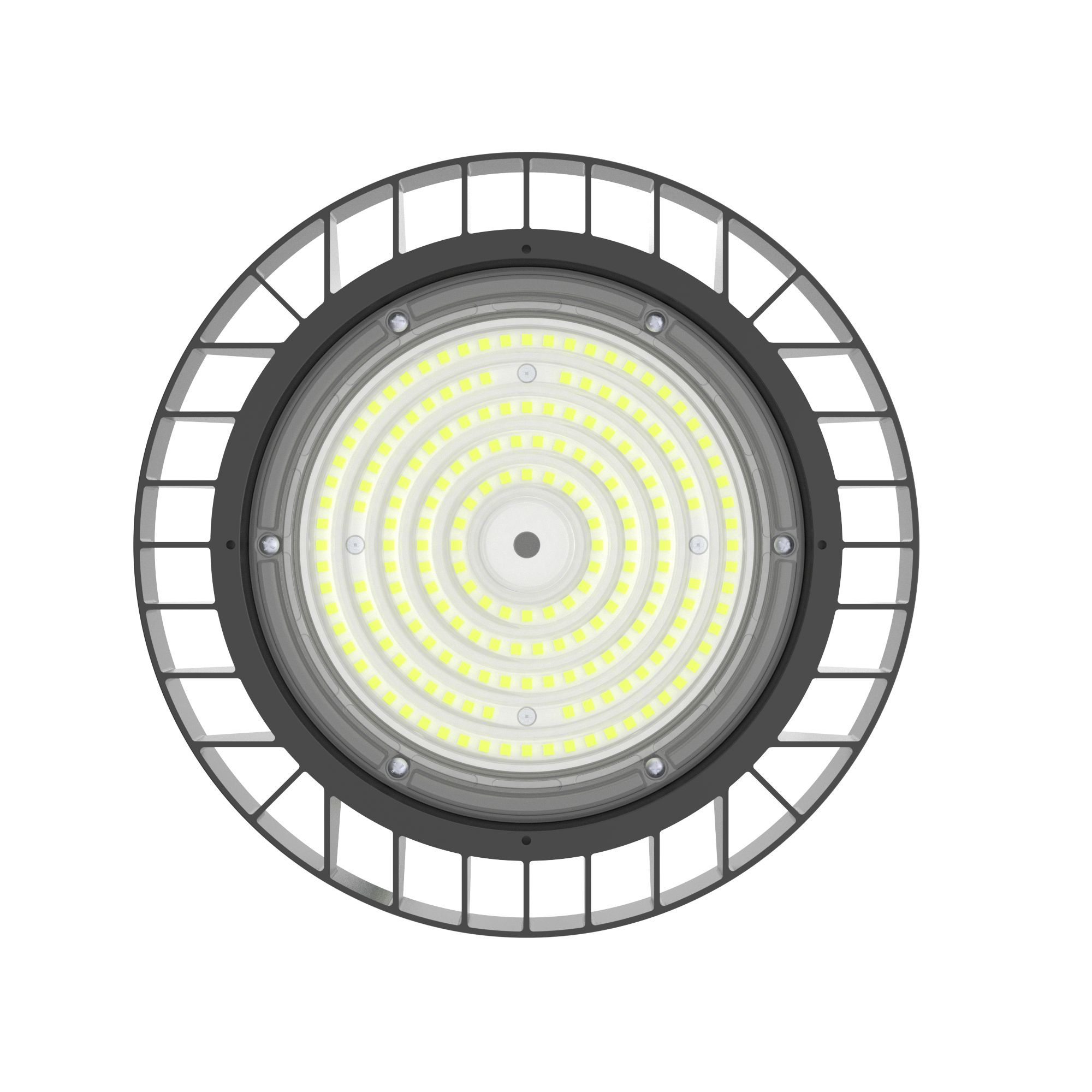

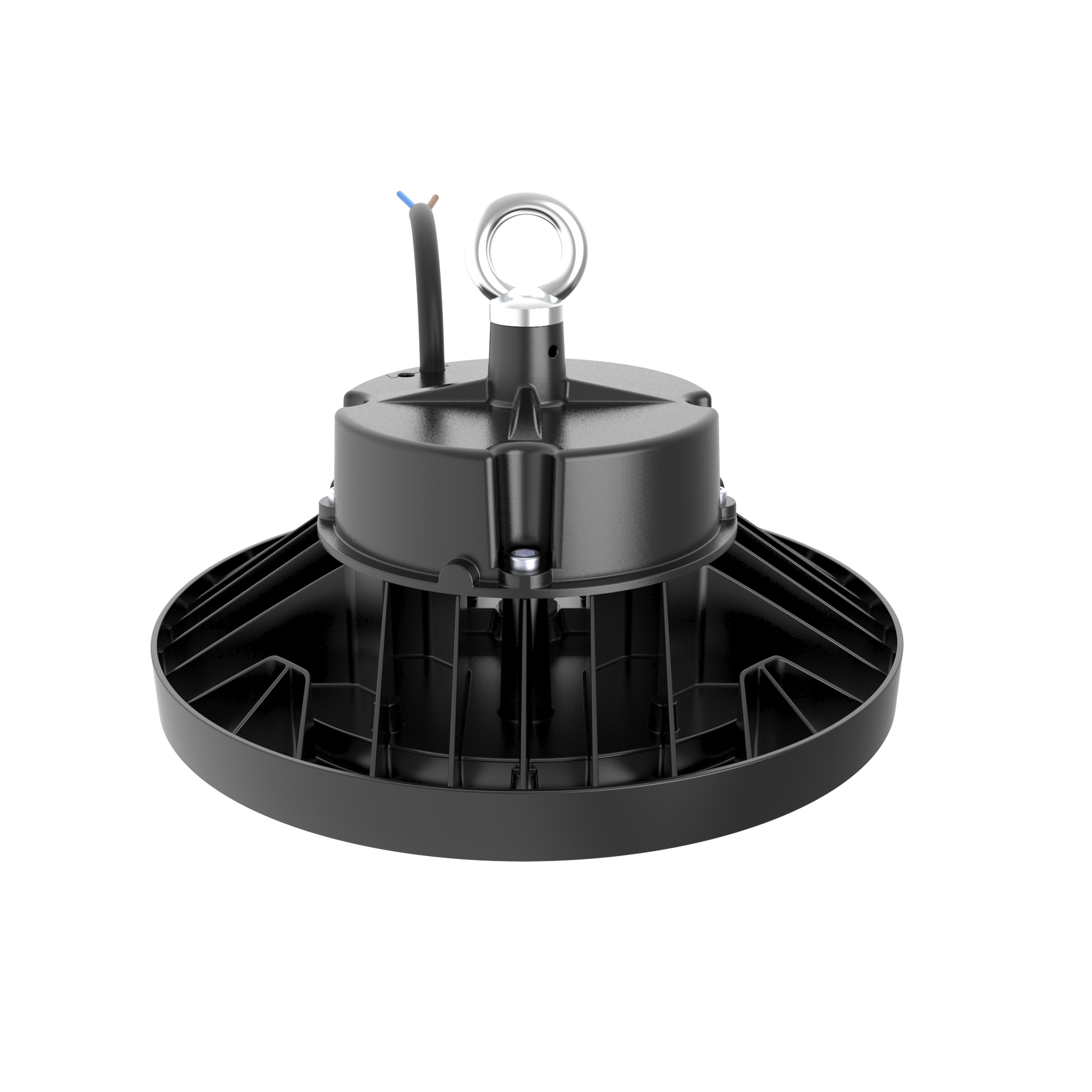

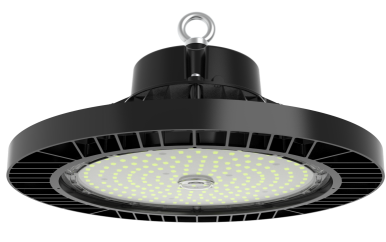

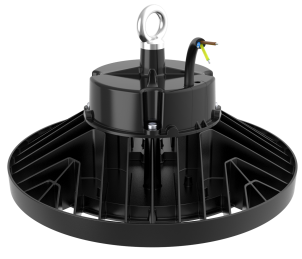

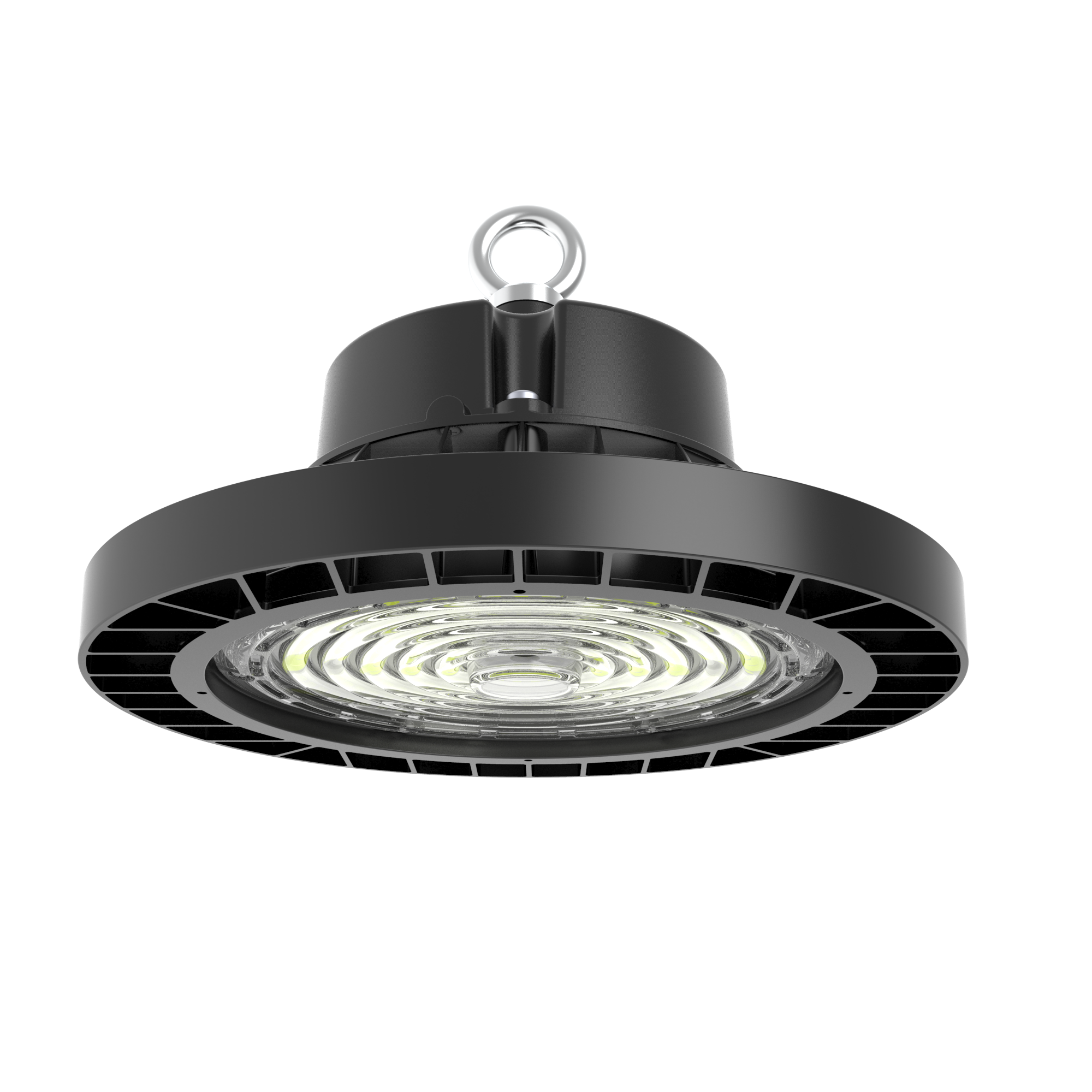

Product picture

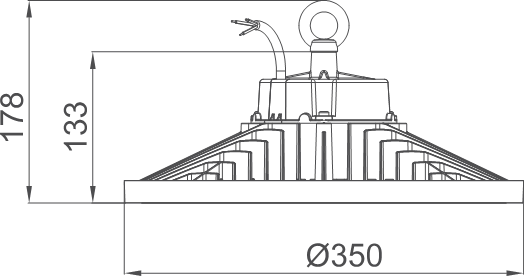

Product Size
Installation
Package
Model No. | PTHE22A0 | PTHE22A5 | PTHE22B0 | PTHE22B4 |
QTY/Carton | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
Carton Size | 275*275*175mm | 310*310*180mm | 360*360*195mm | 400*400*190mm |
N.W | 1.4kg | 1.8kg | 2.5 kg | 3.0kg |
G.W | 1.6kg | 1.9kg | 2.8kg | 3.8kg |
20'' GP Container | 2000PCS | 1500PCS | 1030PCS | 850PCS |
40'' HQ Container | 4900PCS | 3800PCS | 2600PCS | 2200PCS |
LED High Bay Light
Specifications
| |
 |  |
Product Series | UFO 22 |
Model No. | PTHE22A0/ PTHE22A5 / PTHE22B0/ PTHE22B4 |
Version | V0 |
Date | 2024/2/20 |
l Unique flat wheel form design
l Patented ADC12 graded light weight housing
l Wide input voltage AC 220-240/100-277V
l Optical glass over 90% light transmitting
l LED 2835 chip with low lumen decay
l IP65 driver with short circuit/over-flow/over-temperature/over-voltage protection
l 170lm/W,220lm/W available,over 95% energy saving
l Lifespan 50,000 hours, 5 years’ warranty
l Easy installation and low maintenance
100W
150W
200W
240W
 |  |  |
| 100W AL Reflector | 150W AL Reflector | 200W AL Reflector |
Model No. | PTHE22A0 | PTHE22A5 | PTHE22B0 | PTHE22B4 | |
Input Voltage | AC220-240V/120-277V | ||||
Power | 100W | 150W | 200W | 240W | |
Dimming | 1-10V | ||||
Surge Protection | 6kV line-line, 6kV line-earth | ||||
PF | >0.95 | ||||
Power Supply | SOSEN(Ficker Free) | ||||
LED Type | 2835 | ||||
Beam Angle | 60°/90°/120° | ||||
Light Efficiency | 170 lm/W | ||||
Luminous | 17000lm | 25500lm | 34000lm | 40800lm | |
Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500K | ||||
CRI | >70 (Ra80 optional) | ||||
IP | IP65 | ||||
IK | IK08 | ||||
Storage Temp | -40°C~60°C | ||||
Working Temp | -20°C~45°C | ||||
Life Span | 50000h@25°C | ||||
 |  |
Model No. | PTHE22A0 | PTHE22A5 | PTHE22B0 | PTHE22B4 |
QTY/Carton | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
Carton Size | 275*275*175mm | 310*310*180mm | 360*360*195mm | 400*400*190mm |
N.W | 1.4kg | 1.8kg | 2.5 kg | 3.0kg |
G.W | 1.6kg | 1.9kg | 2.8kg | 3.8kg |
20'' GP Container | 2000PCS | 1500PCS | 1030PCS | 850PCS |
40'' HQ Container | 4900PCS | 3800PCS | 2600PCS | 2200PCS |
