PTHE21B0 200W
| Model No. | PTHE21B0 |
| Input Voltage | AC220-240V/120-277V |
| Power | 200W |
| Dimming | 1-10V |
| Surge Protection | 6kV line-line, 6kV line-earth |
| PF | >0.95 |
| Power Supply | SOSEN(Ficker Free) |
| LED Type | 2835 |
| Beam Angle | 60°/90°/120° |
| Light Efficiency | 170 lm/W |
| Luminous | 17000 lm |
| Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500K |
| CRI | >70 (Ra80 optional) |
| IP | IP65 |
| IK | IK08 |
| Storage Temp | -40 °C ~60 °C |
| Working Temp | -20 °C ~45 °C |
| Life Span | 50000h@25 °C |
Function available

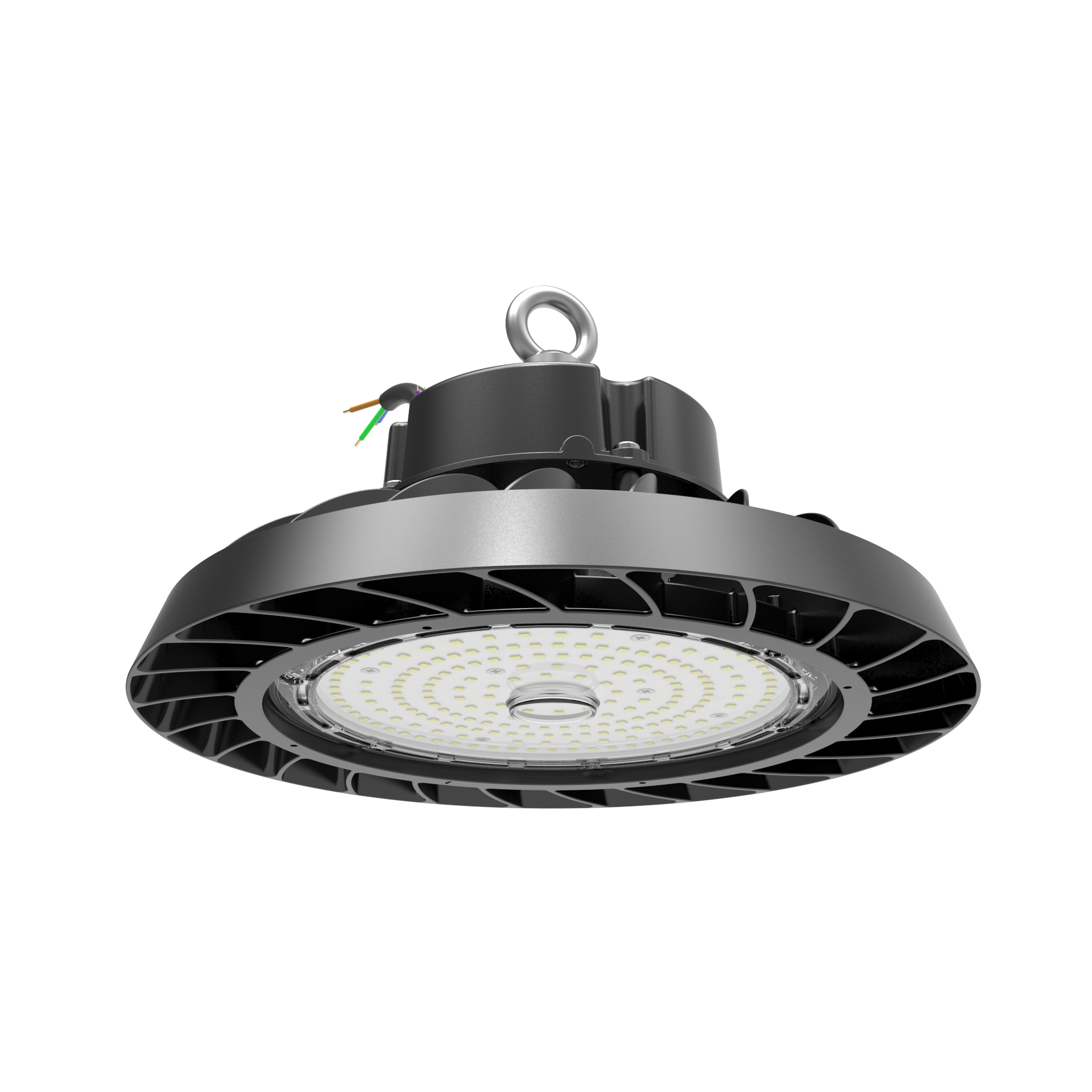

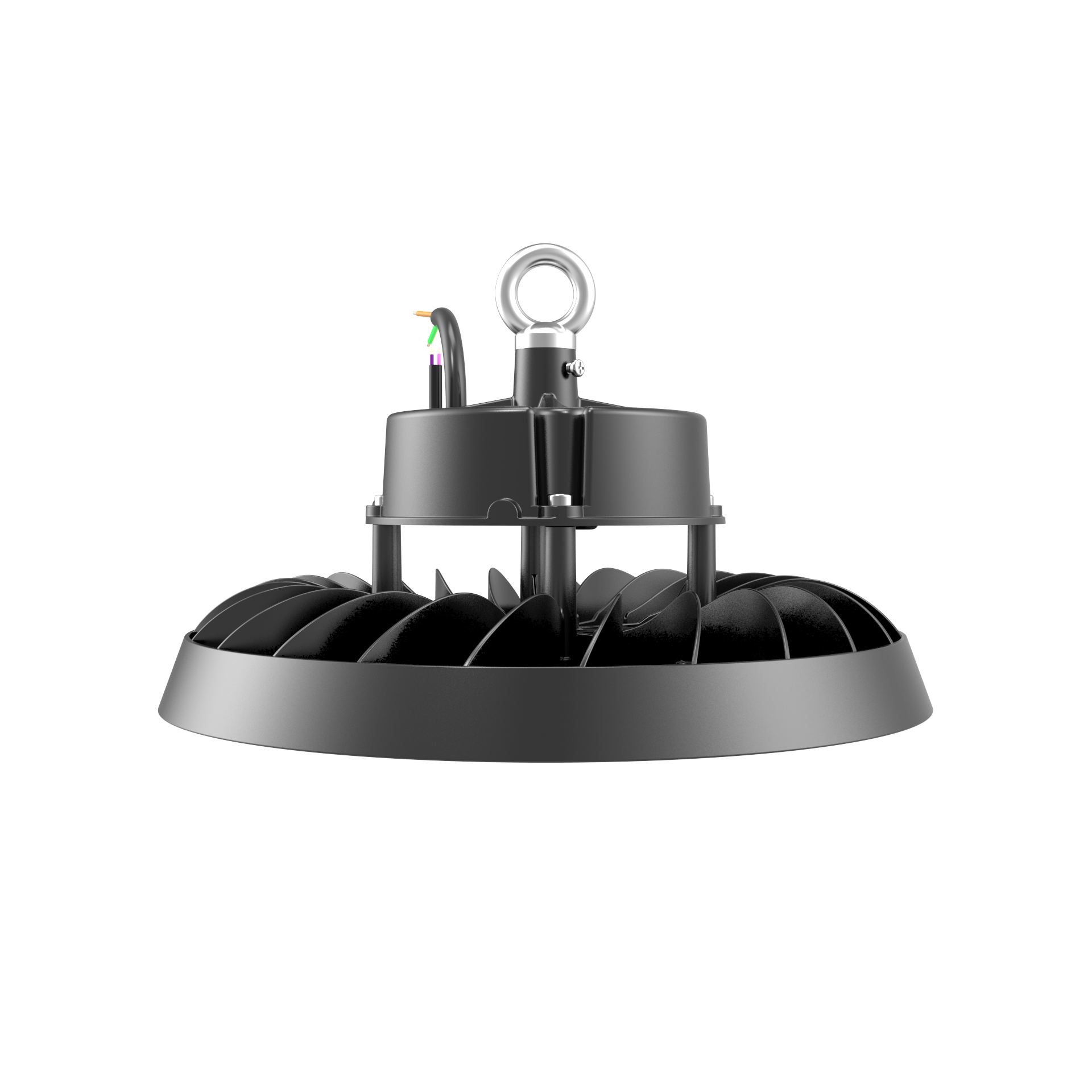

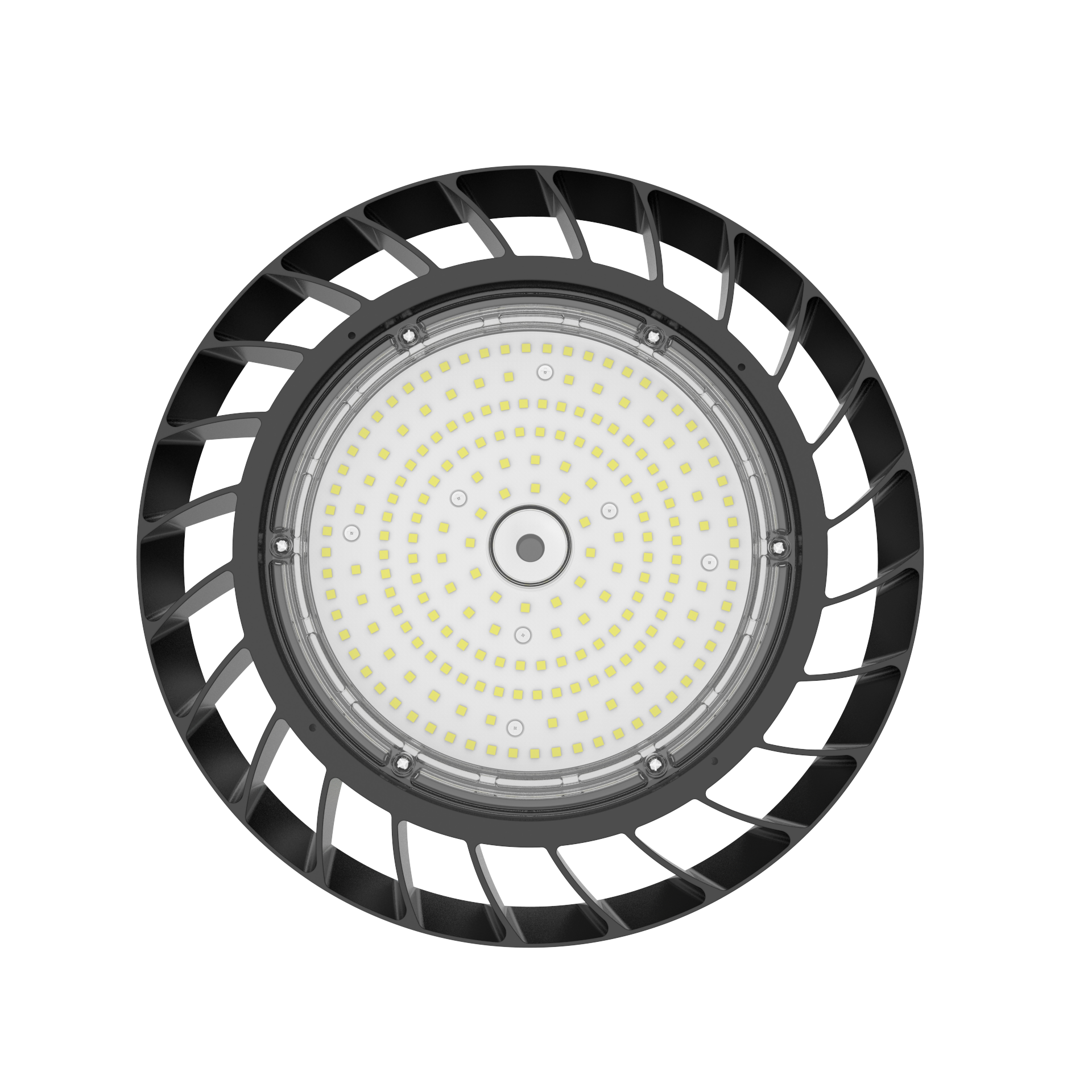

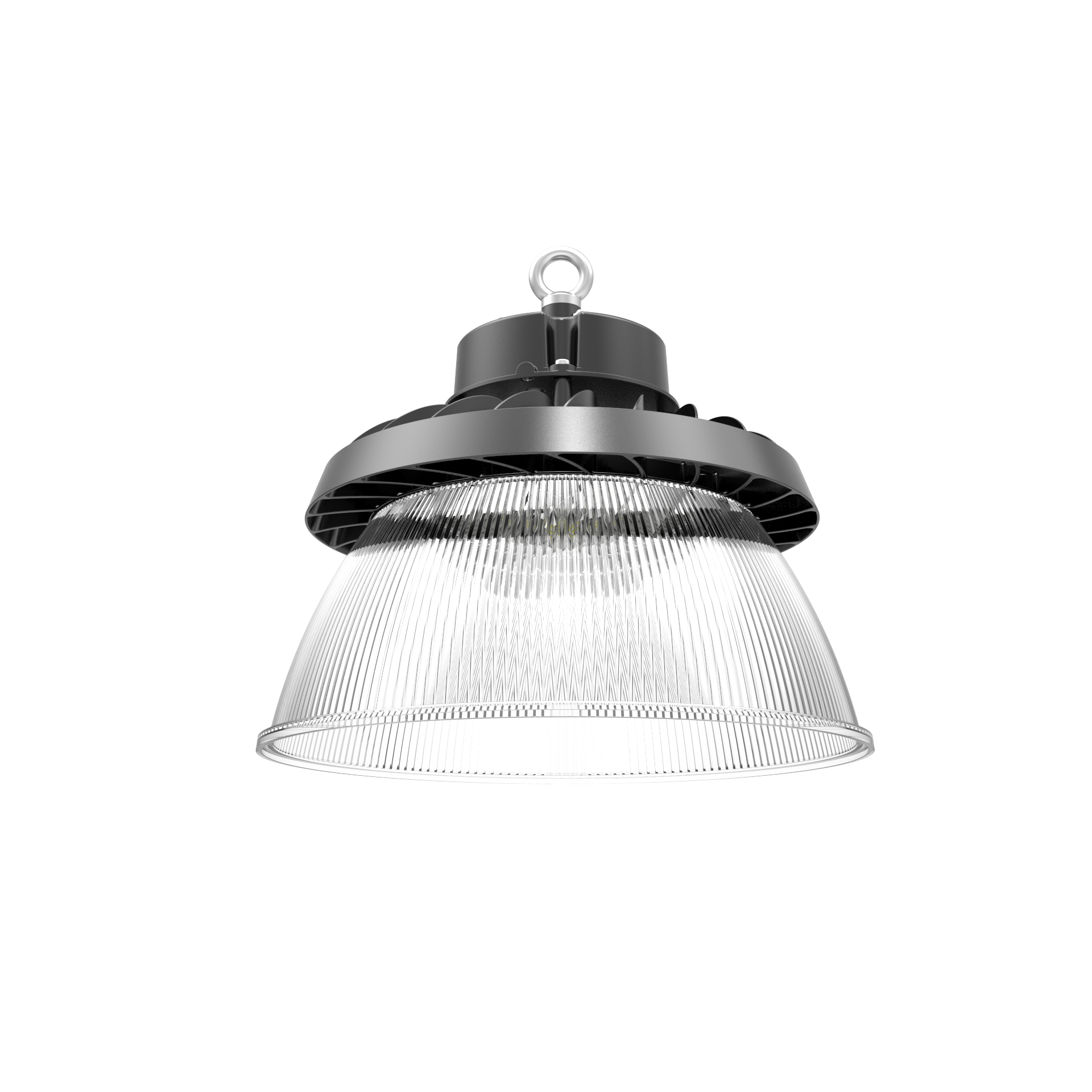

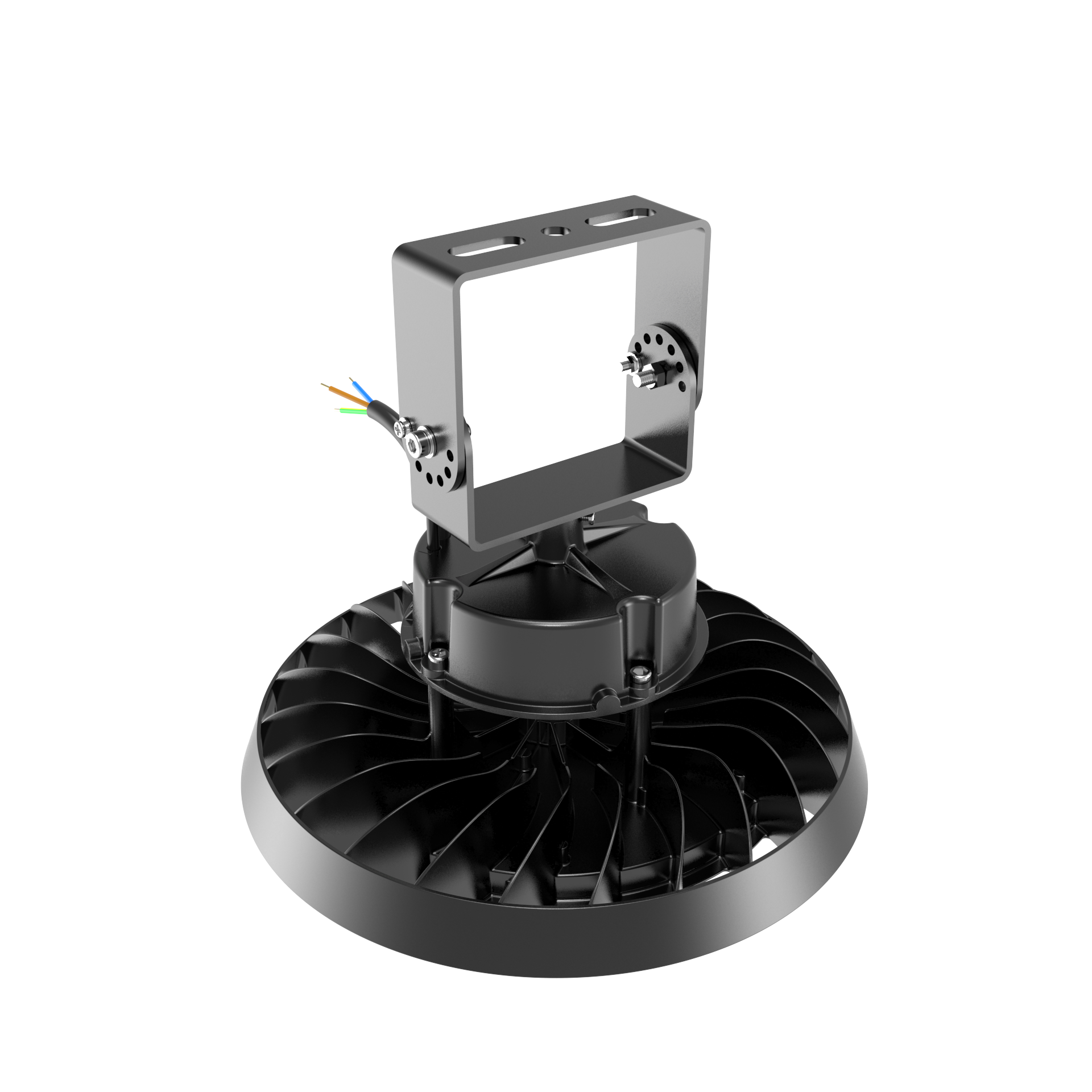

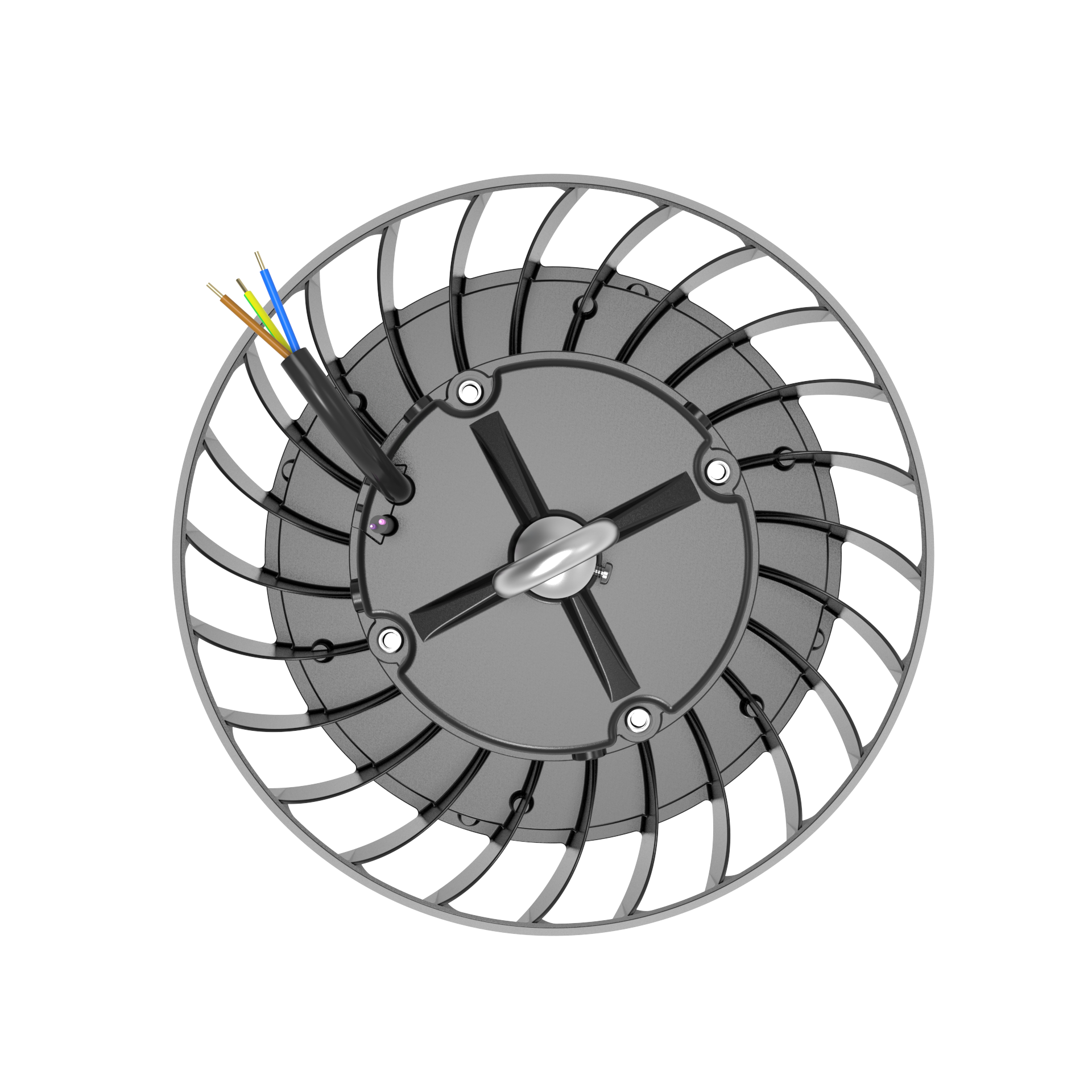

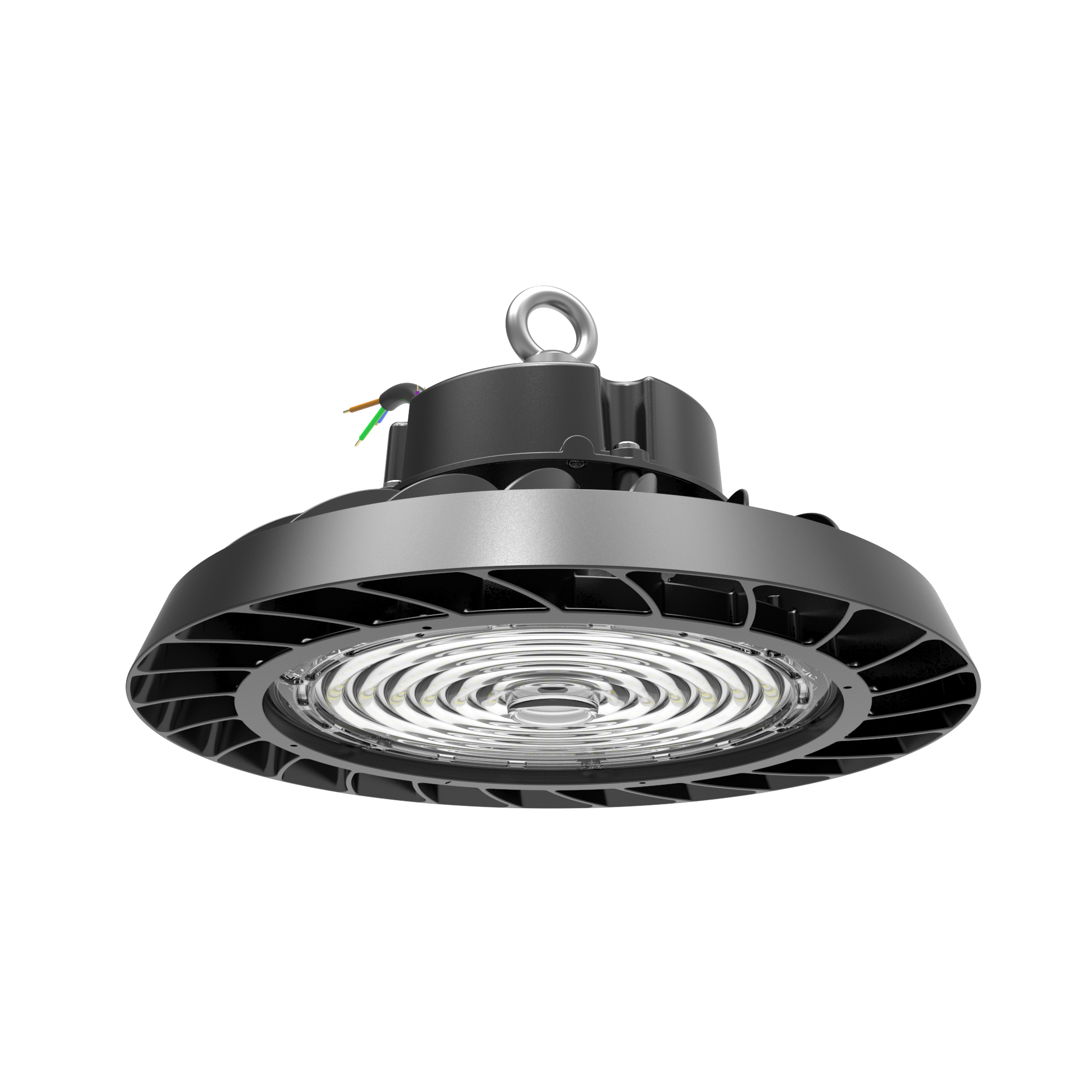

Product picture
Product Size

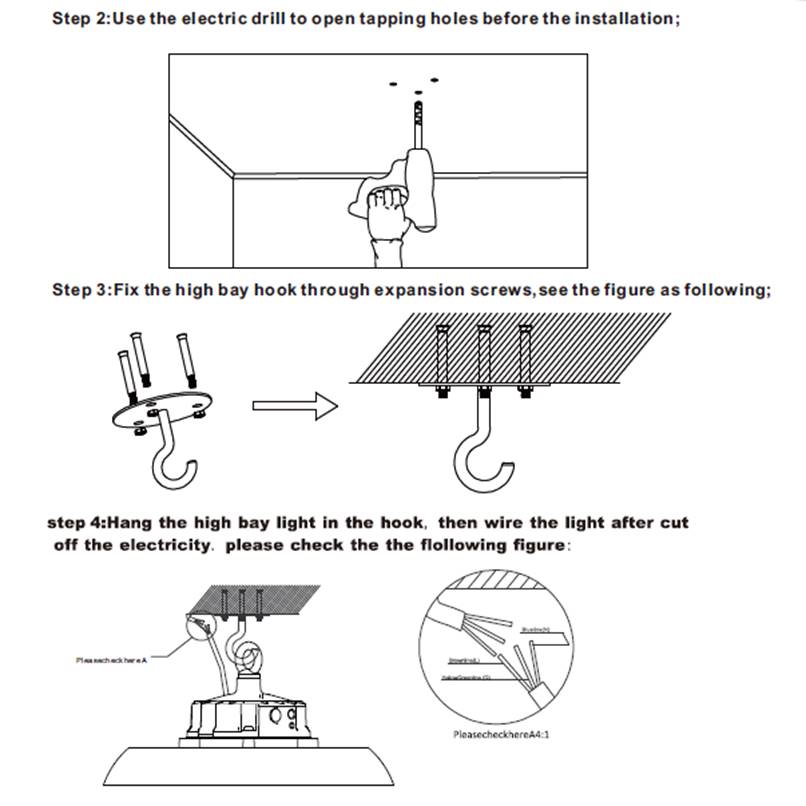

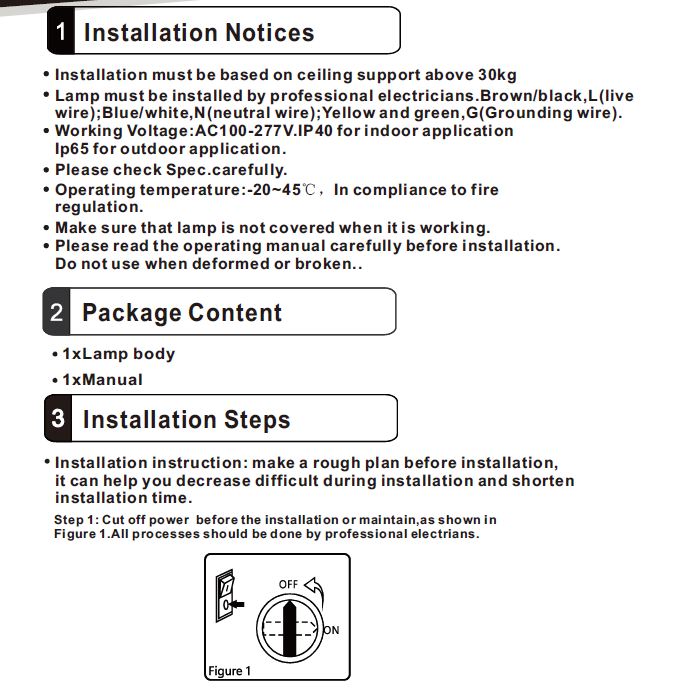

Installation
Package
LED High Bay Light
Specifications
| |
 |  |
Product Series | UFO 21 |
Model No. | PTHE21A0/ PTHE21A5 / PTHE21B0/ PTHE21B4 |
Version | V0 |
Date | 2024/2/20 |
l Unique flat wheel form design
l Patented ADC12 graded light weight housing
l Wide input voltage AC 220-240V/100-277V
l Optical glass over 90% light transmitting
l LED 2835 chip with low lumen decay
l IP65 driver with short circuit/over-flow/over-temperature/over-voltage protection
l 170lm/W, over 95% energy saving
l Lifespan 50,000 hours, 5 years’ warranty
l Easy installation and low maintenance
100W
150W
200W
 |  |  |

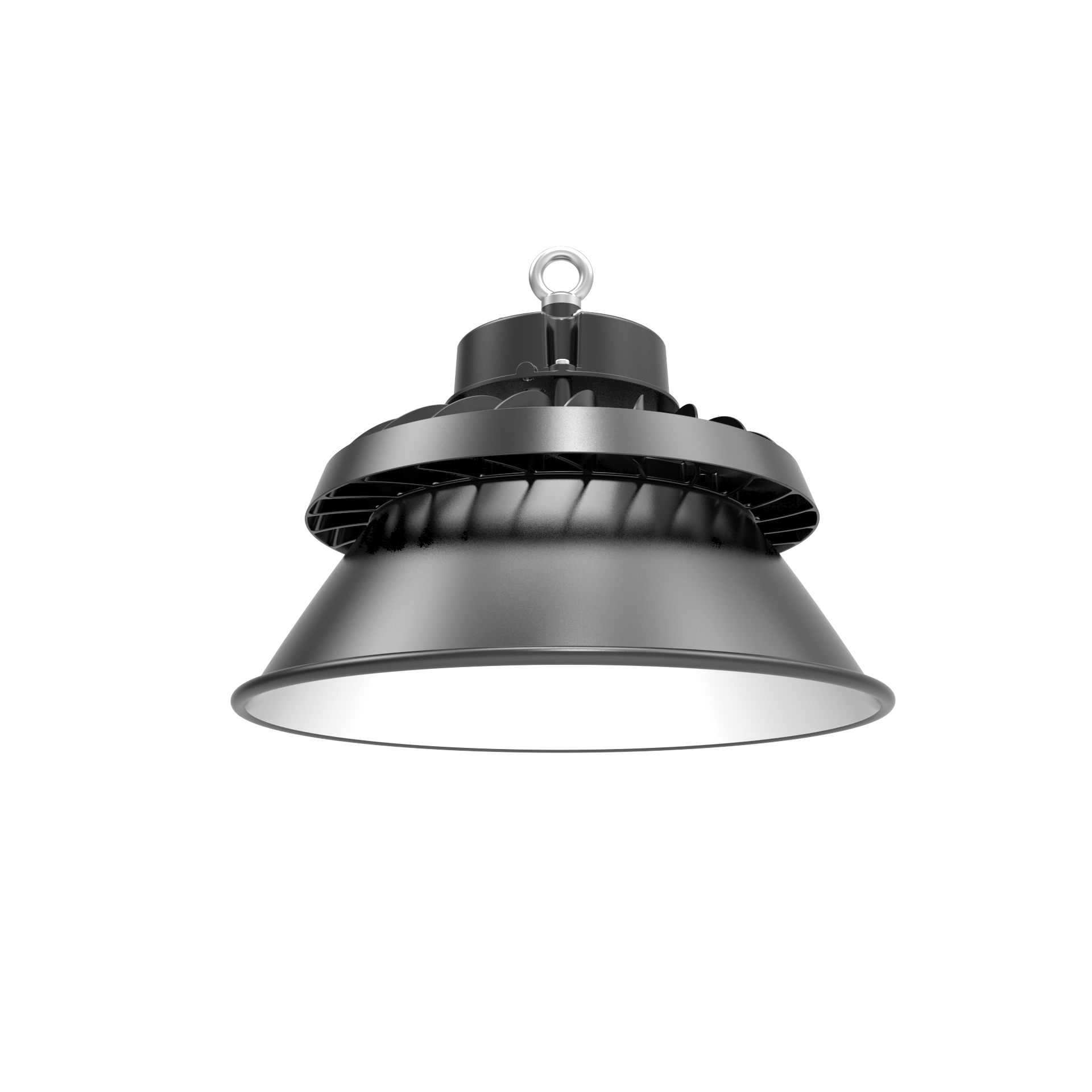

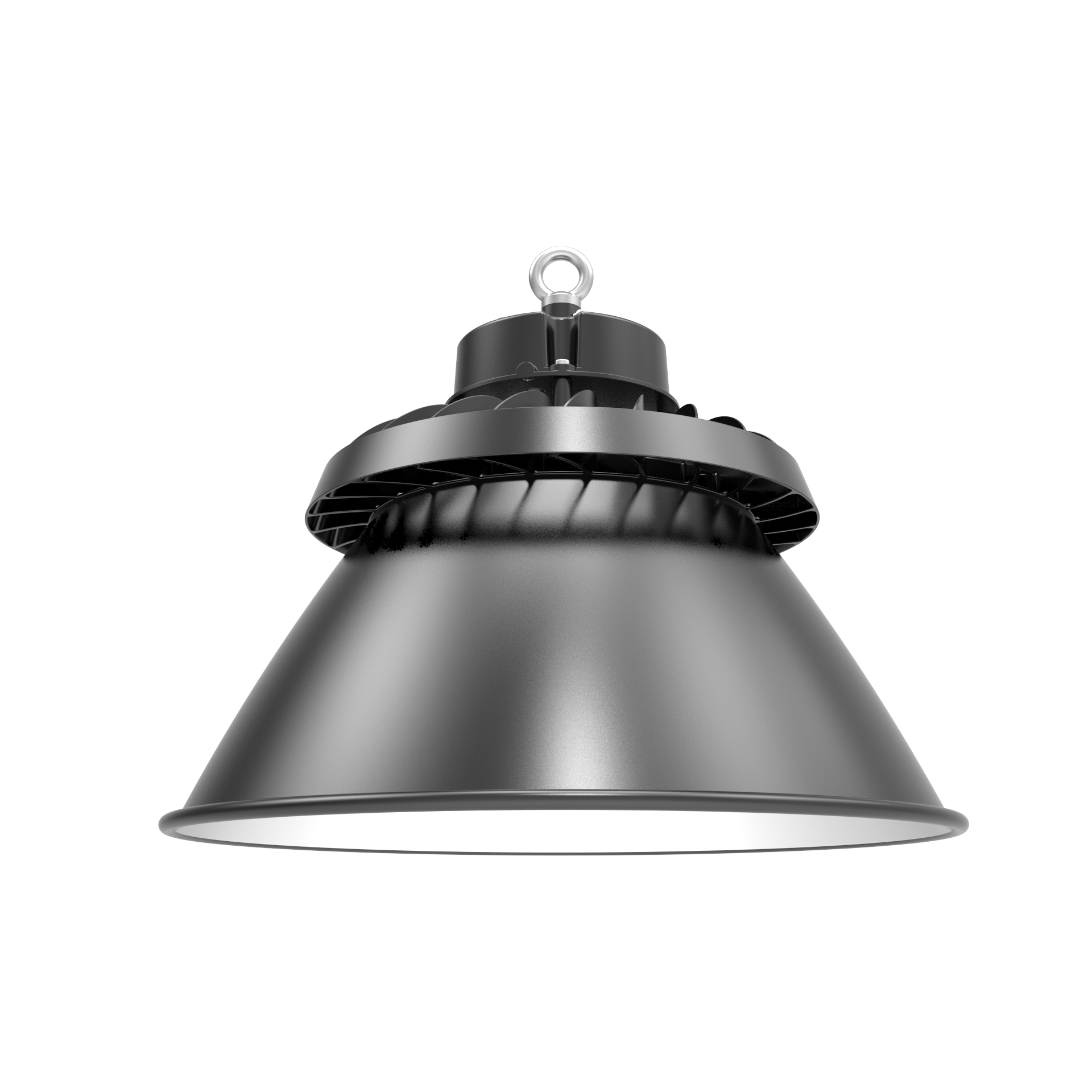

| 100W AL Reflector | 150W AL Reflector | 200W AL Reflector |
Model No. | PTHE21A0 | PTHE21A5 | PTHE21B0 | |
Input Voltage | AC220-240V/120-277V | |||
Power | 100W | 150W | 200W | |
Dimming | 1-10V | |||
Surge Protection | 6kV line-line, 6kV line-earth | |||
PF | >0.95 | |||
Power Supply | SOSEN(Ficker Free) | |||
LED Type | 2835 | |||
Beam Angle | 60°/90°/120° | |||
Light Efficiency | 170 lm/W | |||
Luminous | 17000lm | 25500lm | 34000lm | |
Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500K | |||
CRI | >70 (Ra80 optional) | |||
IP | IP65 | |||
IK | IK08 | |||
Storage Temp | -40°C~60°C | |||
Working Temp | -20°C~45°C | |||
Life Span | 50000h@25°C | |||
 |  |

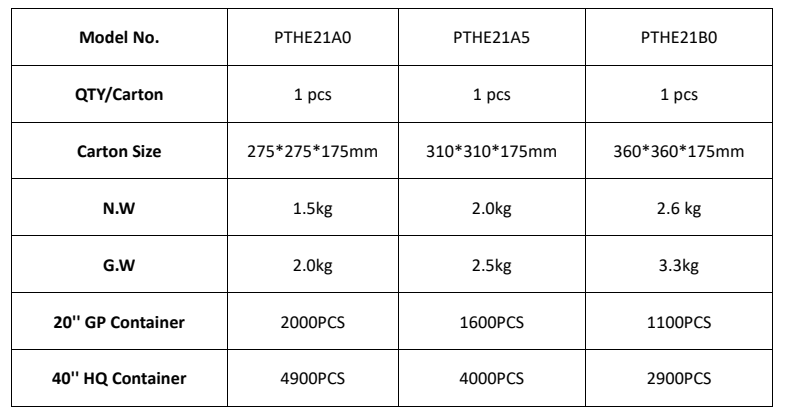

Model No. | PTHE21A0 | PTHE21A5 | PTHE21B0 |
QTY/Carton | 1 pcs | 1 pcs | 1 pcs |
Carton Size | 275*275*175mm | 310*310*175mm | 360*360*175mm |
N.W | 1.5kg | 2.0kg | 2.6 kg |
G.W | 2.0kg | 2.5kg | 3.3kg |
20'' GP Container | 2000PCS | 1600PCS | 1100PCS |
40'' HQ Container | 4900PCS | 4000PCS | 2900PCS |
