PTHE16A0 100W
.png)
| Model No. | PTHE16A0 |
| Input Voltage | AC200-240V |
| Power | 100W |
| Dimming | No |
| Spd. | 3KV |
| PF | >0.95 |
| LED Type | 2835 |
| Beam Angle | 120° |
| Light Efficiency | 100 lm/W |
| Luminous | 10000 lm |
| Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500 K |
| CRI | 70/80Ra |
| IP | IP65 |
| Working Temp | -20 °C ~ 45 °C |
| Storage Temp | -40 °C ~ 60 °C |
| Life Span | 35000h@25 °C |
Function available
Product picture

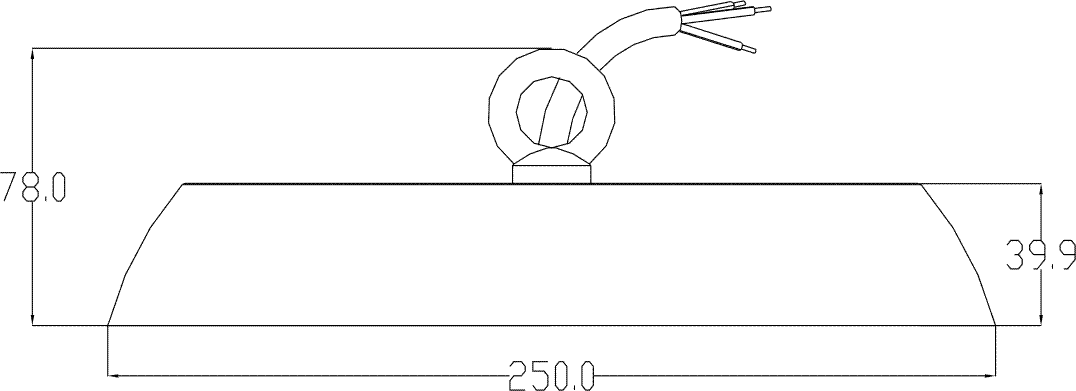

Product Size
Installation
Package
LED High Bay Light-DOB
Specifications
| |
 |  |
Product Series | UFO 16-DOB |
Model No. | PTHE16A0/ PTHE16A5 / PTHE16B0 |
Version | V2 |
Date | 2023/3/20 |
l Unique flat wheel form design
l Patented ADC12 graded lightweight housing
l Built in driver with 3KV surge protection
l input voltage AC 220-240V
l Optical glass over 90% light transmitting
l LED 2835 chip with low lumen decay
l Lifespan 35,000 hours, 3 years’ warranty
l Easy installation and low maintenance
Model No. | PTHE16A0 | PTHE16A5 | PTHE16B0 |
Input Voltage | AC200-240V | AC200-240V | AC200-240V |
Power | 100W | 150W | 200W |
Dimming | No | No | No |
Spd. | 3KV | ||
PF | >0.95 | ||
LED Type | 2835 | ||
Beam Angle | 120° | ||
Light Efficiency | 100 lm/W | ||
Luminous | 10000 lm | 15000 lm | 20000 lm |
Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500 K | ||
CRI | 70/80Ra | ||
IP | IP65 | ||
Working Temp | -20°C~45°C | ||
Storage Temp | -40°C~60°C | ||
Life Span | 35000h@25°C | ||
Model No. | PTHE16A0 | PTHE16A5 | PTHE16B0 |
QTY/Carton | 1 pcs | 1 pcs | 1 pcs |
Carton Size | 288*288*110mm | 335*335*110mm | 380*380*110mm |
N.W | 1.1kg | 1.4kg | 2.0kg |
G.W | 1.4kg | 1.85kg | 2.55 kg |
20'' GP Container | 2850PCS | 2115PCS | 1635PCS |
40'' HQ Container | 7250PCS | 5360PCS | 4150PCS |
