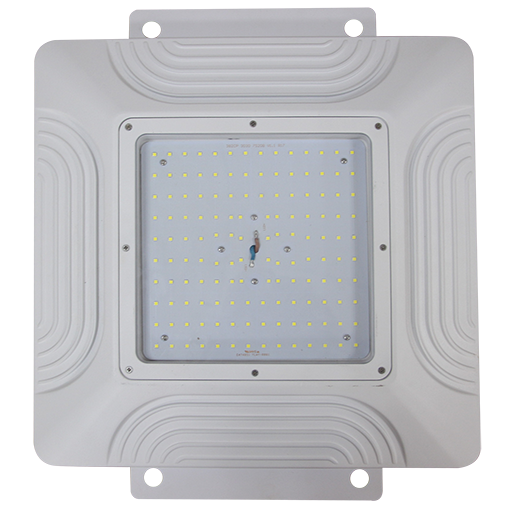

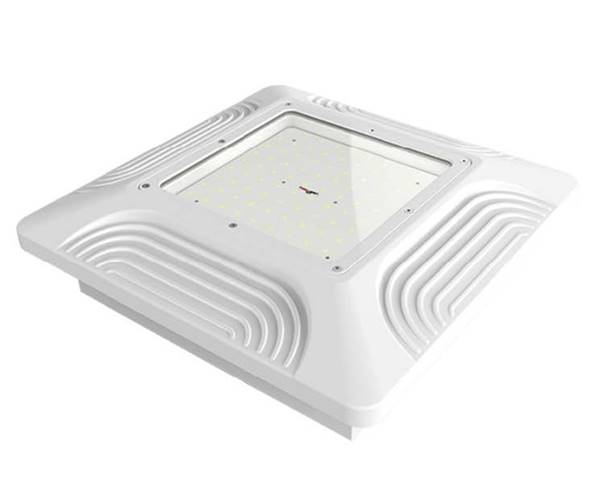

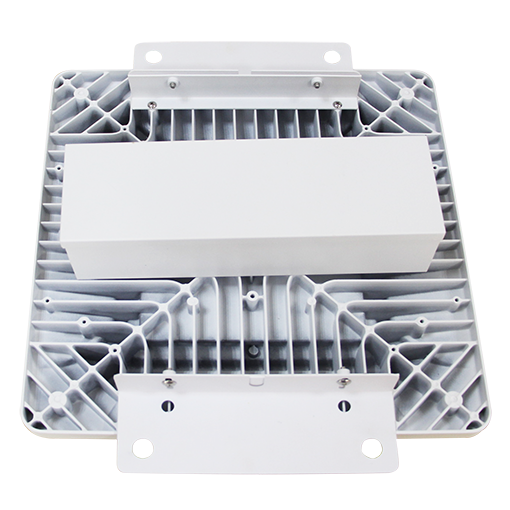

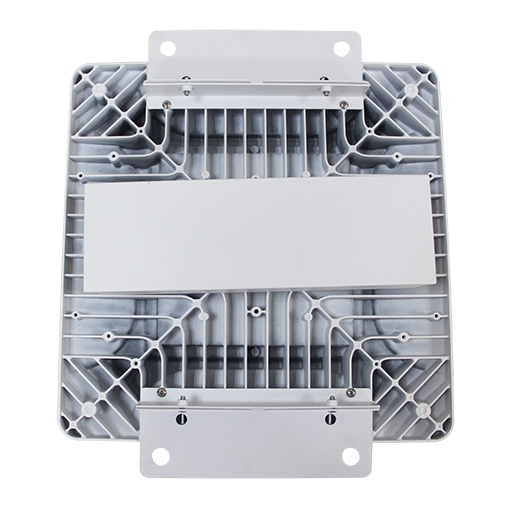

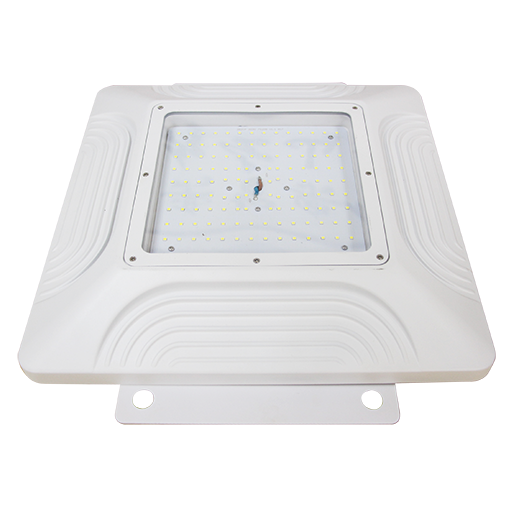

Product picture

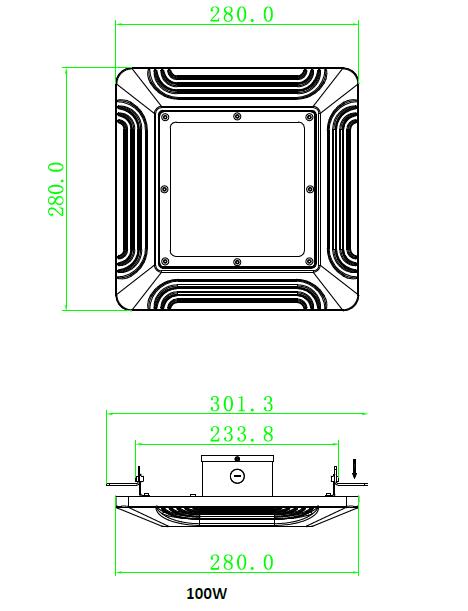

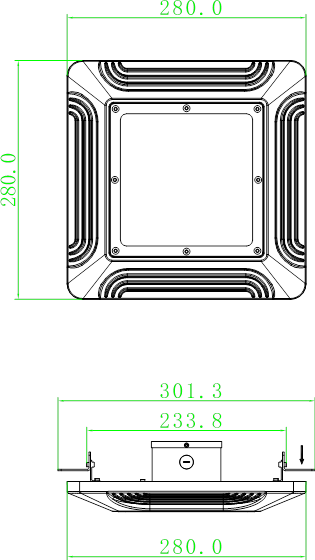

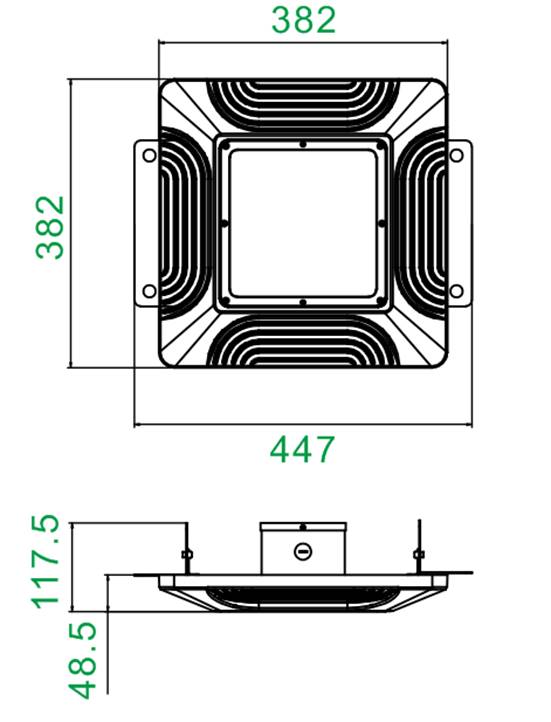

Product Size

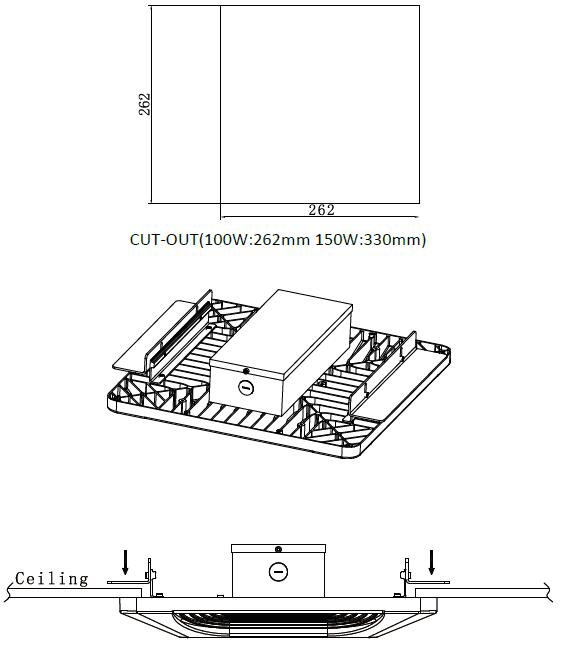

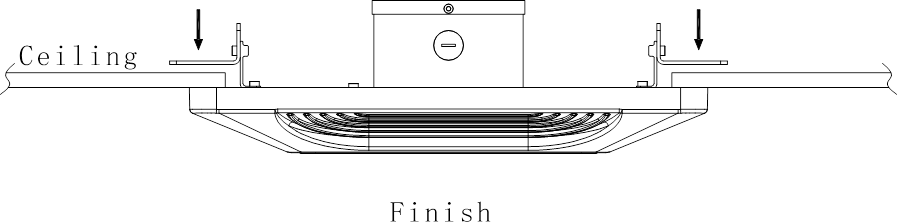

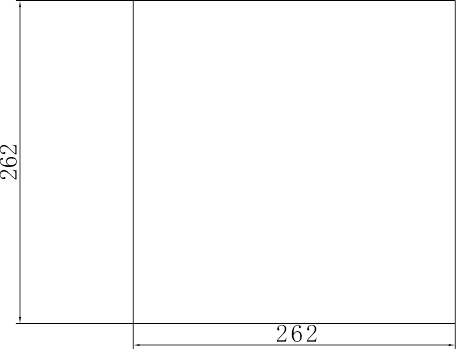

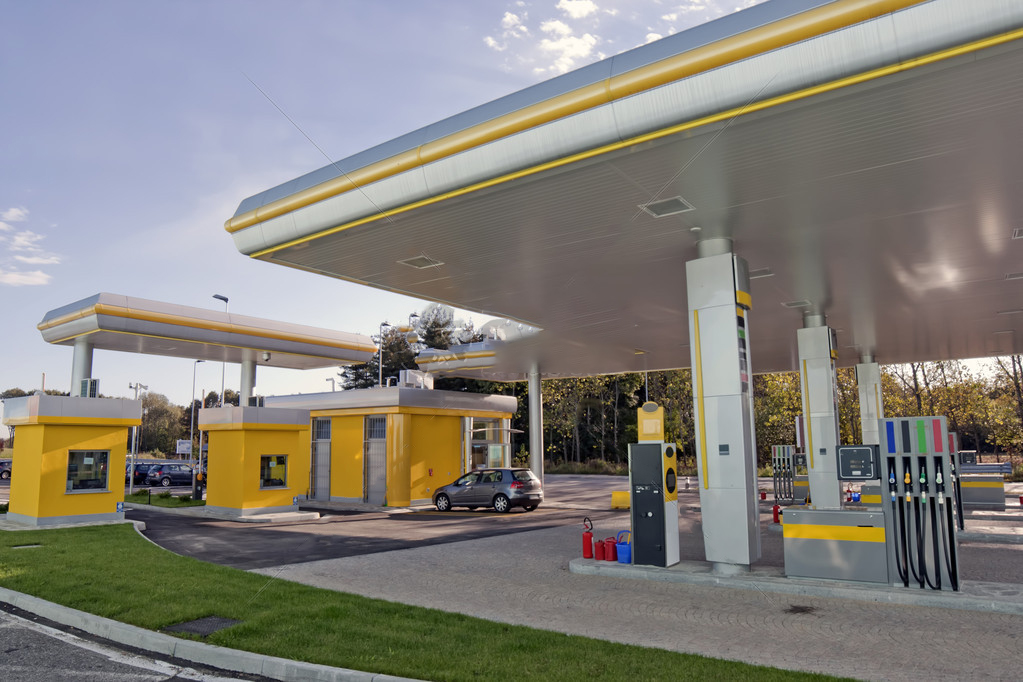

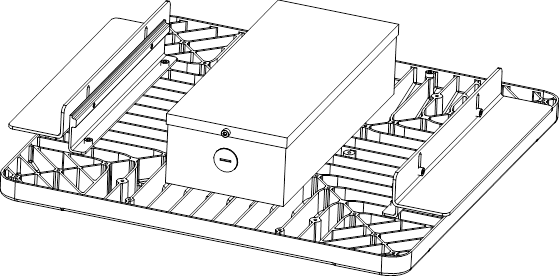

Installation

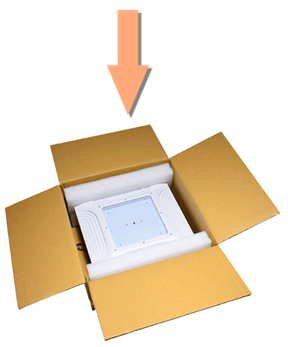

Package
LED Gas Station Light
Specifications
Product Series | LED Gas Station Light |
Model No. | PTGA01A0/PTGA01A5 |
Version | V3 |
Date | 2023/2/20 |
l Unique flat form design
l Die-casting integrated AL casing make faster heat dissipation
l Optical glass over 90% light transmitting
l LED 3030 chip with low lumen decay
l IP65 driver with short circuit/over-flow/over-temperature/over-voltage protection
l 120lm/W, over 90% energy saving
l Lifespan 50,000 hours, 5 years’ warranty
l Easy installation and low maintenance
Model No. | PTGA01A0 | PTGA01A5 |
Input voltage | AC100-277V | AC100-277V |
Power | 100W | 150W |
Dimming | Not | Not |
PF | >0.95 | >0.95 |
LED Type | SMD3030 | SMD3030 |
Beam angle | 120° | 120° |
Light efficiency | 120 lm/W | 120 lm/W |
luminous | 12000 lm | 18000 lm |
Color Temp | 3000±200K / 4000±250K / 5700±300K / 6500±500 K | 3000±200K / 4000±250K / 5700±300K / 6500±500 K |
CRI | 70/80Ra | 70/80Ra |
IP | 65 | 65 |
Working Temp | -20°C~45°C | -20°C~45°C |
Storage Temp | -40°C~60°C | -40°C~60°C |
Life span | 50000h@25°C | 50000h@25°C |
Model No. | PT-GS100W | PT-GS150W |
QTY/Carton | 1 pcs | 1 pcs |
Carton Size | 350*350*210mm | 440*440*210mm |
N.W | 4.1KG | 5.1KG |
G.W | 5.4 KG | 6.7 KG |
20'' GP Container | 1010PCS | 640PCS |
40'' HQ Container | 2565PCS | 1620PCS |
PearlLED Gas Station Light-PTGA01A0-100w-120°_IESNA2002.IES
PearlLED Gas Station Light-PTGA01A0-100w-120°-IES.pdf
